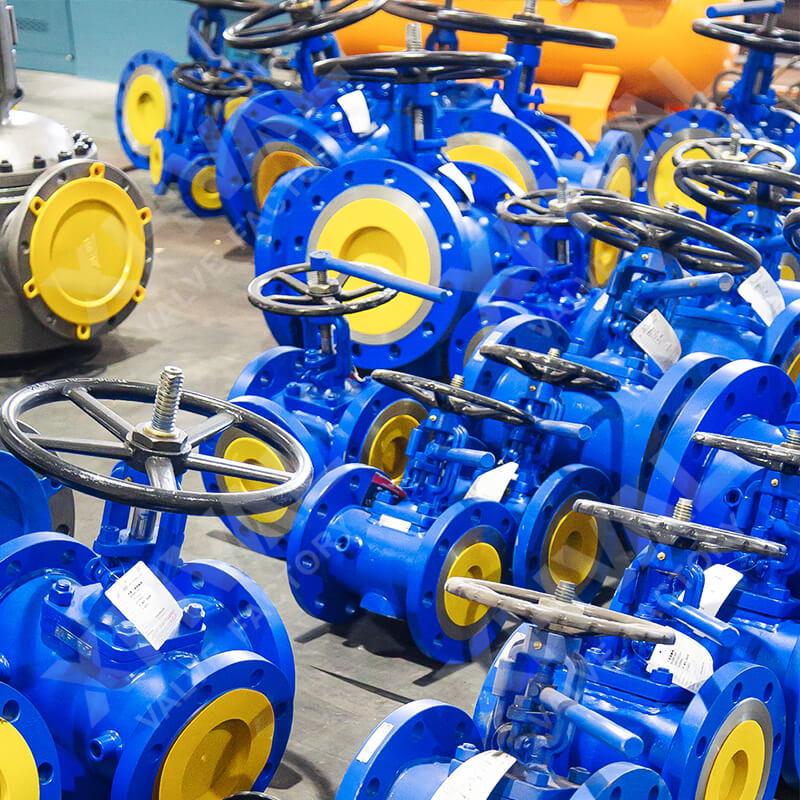

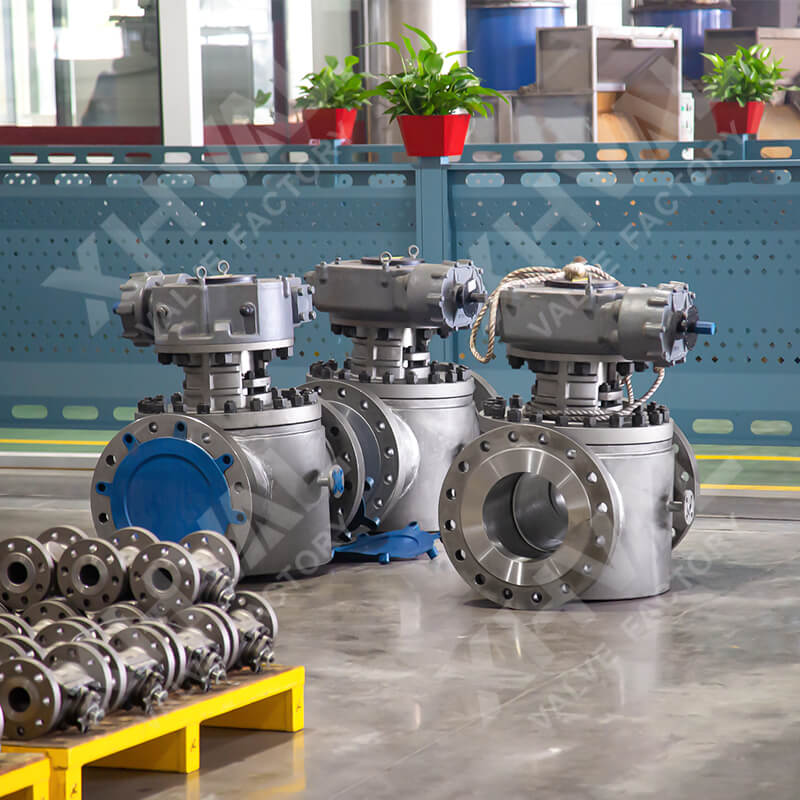

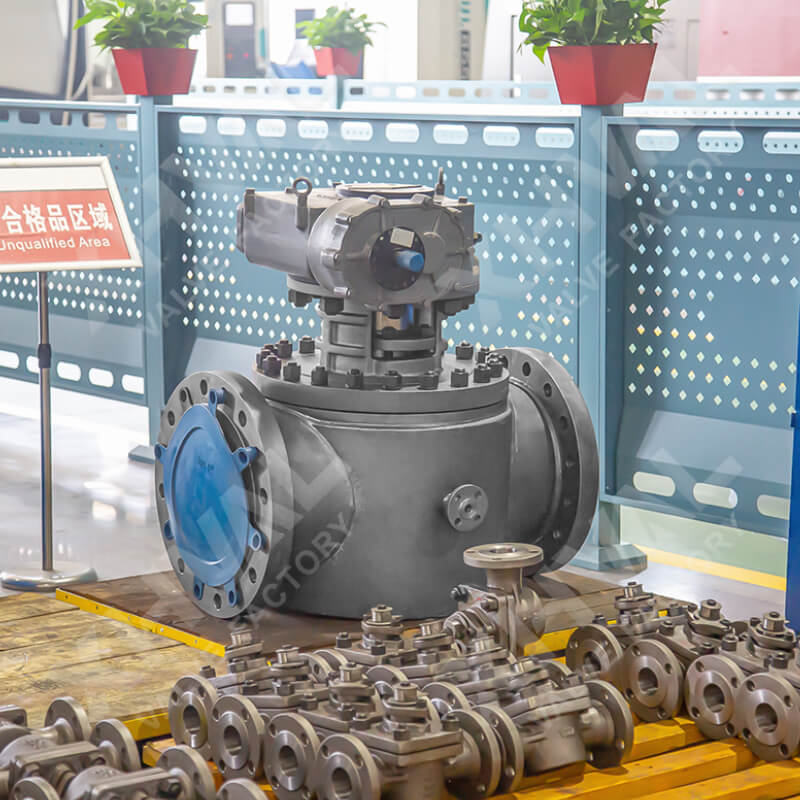

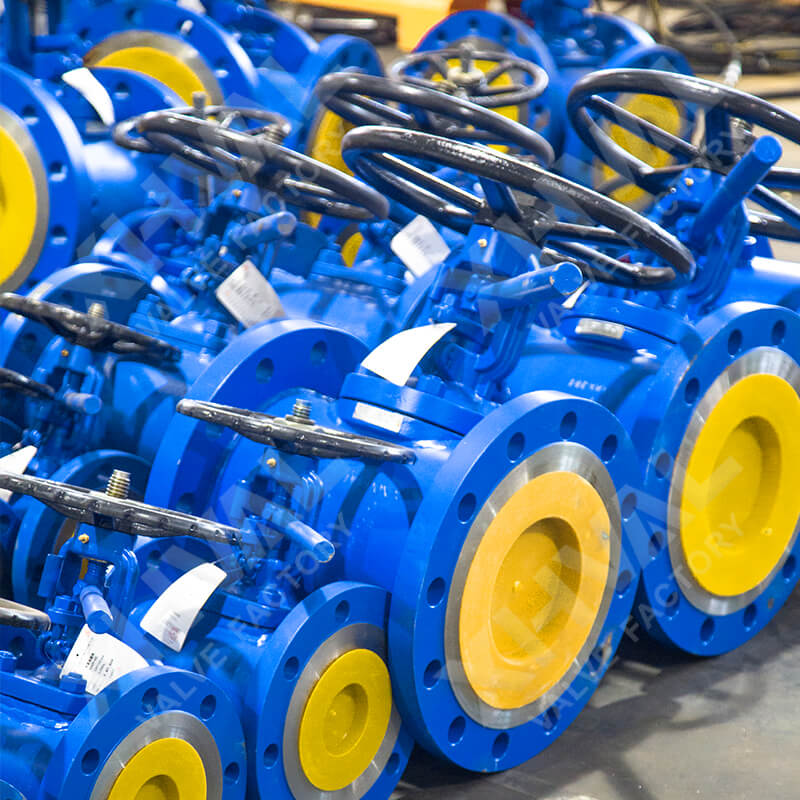

Non-Lubricated Plug Valve
Plug valves are valves with cylindrical “plugs” which can be rotated inside the valve body to control flow through the valve.
Introduction of Non-Lubricated Plug Valve
Plug valves are valves with cylindrical “plugs” which can be rotated inside the valve body to control flow through the valve. The plugs in plug valves have one or more hollow passageways going sideways through the plug, so that fluid can flow through the open plug.
Features
- Body Material: Carbon Steel, Alloy Steels, Stainless Steels
- Sleeve: PTFE and Other Materials
- Gear Operators: Available in weather proof construction
- Unique 360 Degree Metal Edge
Specifications
| Valve Size | 1/4～30 |
|---|---|
| Pressure Class | 150～1500LB |
| Materials | WCB.CF8.CF8M.CF3M.CN7M.M35-1. |
| Design and Manufacturing Standards | API 598 (Zero Leakage), API 6D |
| Face to Face Standards | ASME B 16.10, |
| Flange Dimension Standards | ASME B 16.5, ASME B16.47 |
| Pressure Test Standards | API 598 (Zero Leakage), API 6D |
| Fire Safety Test Standards | API607 JB/T6899 |
| Fugitive Emissions | GB/T26481-2011 |
| NACE | NACE-MR-0175 |
| Valve operator options | Handwheel, Worm Gear, Electric actuator, Pneumatic actuator |
| Shutoff Class | API 598 (Zero Leakage), API 6D |
| Bore | Full Bore |
| Process Connection Types | RF FF TG SW BW NPT |
Product Details
