XHVAL manufactures flanged gate valves in different dimensions for various applications.

Introduction of Flanged Gate Valve

As its name implies, a flanged gate valve is a gate valve with flanged end connections. This connection type is both simple to install and uninstall in pipelines. For this reason, a flanged end is widely used in industrial valves. Furthermore, a flanged end provides easy access to inspection, cleaning, and readjustments.

This valve is made from strong materials, such as aluminum, bronze, cast iron, stainless steel, forged steel, and even plastic. However, depending on the application, this valve can be made from more complex materials. Some examples are low carbon steel, high-alloy steel, and non-ferrous steel.

Industries that commonly use it include transport, water and wastewater treatment, petroleum, gas, and chemicals. Depending on the make of the flanged gate valve, it can also be used in chemical fertilizer processing and power generation.

Specifications

Pressure Class150LB–2500LB, PN16–PN420
MaterialsCarbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22;
Design and Manufacturing StandardsAPI602, ASME 16.34, BS 5352, BS 6364;
Face to Face StandardsAPI 602
Flange Dimension StandardsSW Socket welding ends according to ASME B16.11, BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1
Pressure Test StandardsAPI 598
Fire Safety Test Standards
Quality/Product CertificationsISO9001, ISO14001, ISO18001;
Fugitive EmissionsISO 15848-1, API 622;
NACENACE MR 0103 NACE MR 0175;
Valve operator optionsHandwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator;
Shutoff ClassAPI 598 (Zero Leakage), API 6D
BoreFull Bore, Reduced Bore
Process Connection TypesSW, NPT, BW, RF, RTJ

Product Details

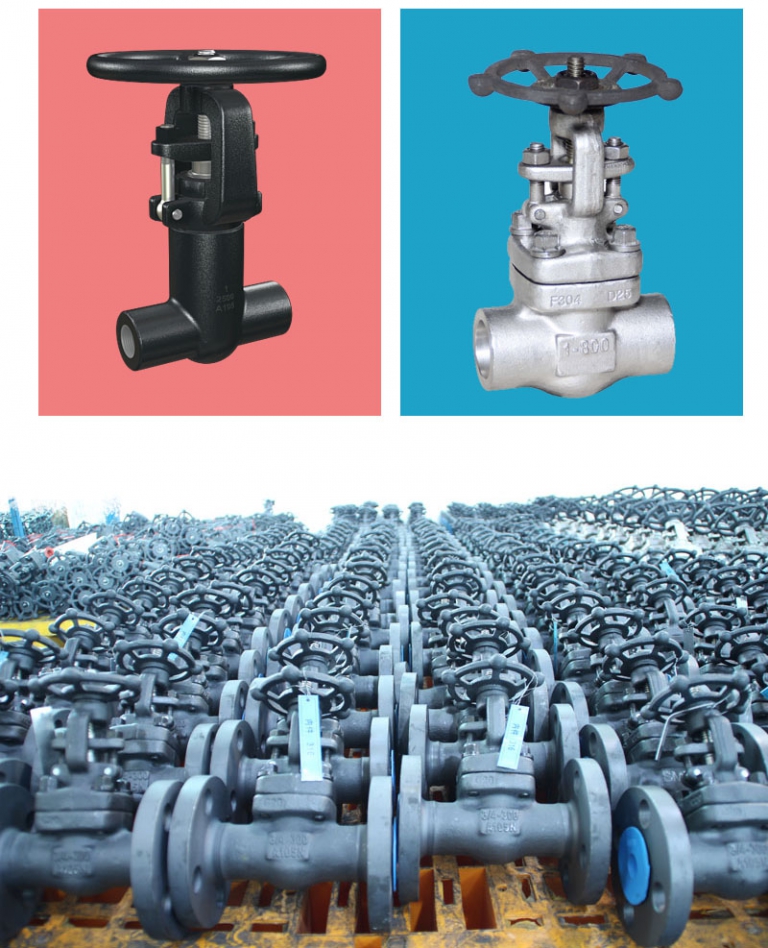

forged steel gate valve
