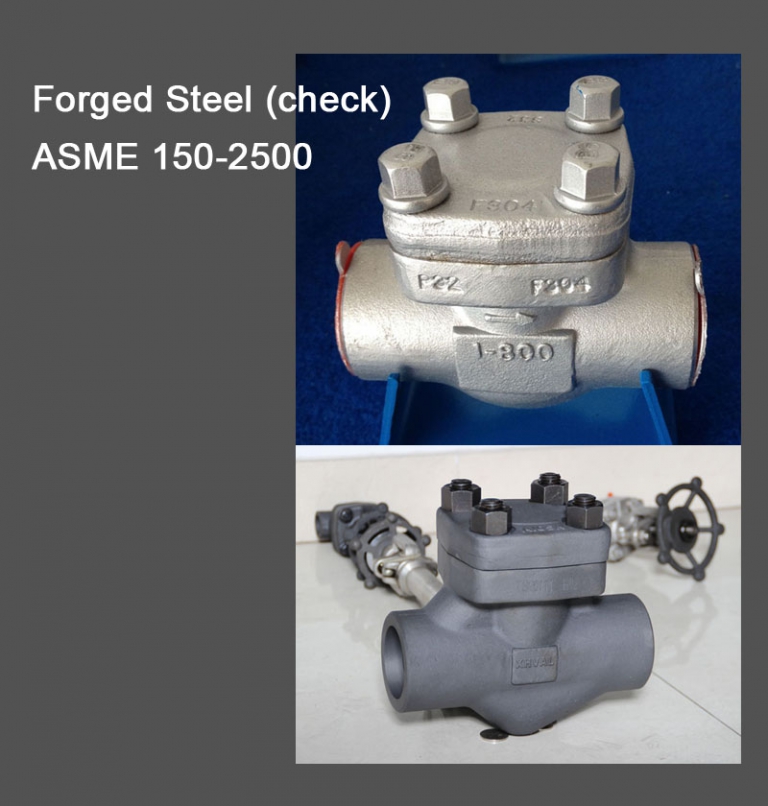

Forged Steel Check Valve

A range of ASME class 150 and 2500 reduced bore forged steel valves with screwed, socket weld, butt weld or flanged ends

Introduction of Forged Steel Check Valve

ASME 150-2500

A range of ASME class 150 and 2500 reduced bore forged steel valves with screwed, socket weld, butt weld or flanged ends

Designed for ASME Boiler and Pressure Vessel Code, Section I applications including vents, drains, by-pass systems,  instrument isolation, control valve isolation, auxiliary steam lines, heat exchangers and oil and gas applications wherever reliable, leak-tight performance, under high temperature/pressure conditions, is required. Find more high-quality check valve here in XHVAL.

Specifications

Valve Size1/4″–2″, DN10–DN50
Pressure Class150LB–2500LB, PN16–PN420
MaterialsCarbon Steel: A105, LF2, Stainless Steel: F304, F304L, F316, F316L, Duplex: F51, F55, Alloy: F1, F5, F5A, F9, F11, F22;
Design and Manufacturing StandardsAPI602, ASME 16.34, BS 5352, BS 6364;
Face to Face StandardsAPI 602
Flange Dimension StandardsSW Socket welding ends according to ASME B16.11, BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1
Pressure Test StandardsAPI 598
Fire Safety Test Standards
Quality/Product CertificationsISO9001, ISO14001, ISO18001;
Fugitive EmissionsISO 15848-1, API 622;
NACENACE MR 0103 NACE MR 0175;
Valve operator optionsHandwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator;
Shutoff ClassAPI 598 (Zero Leakage), API 6D
BoreFull Bore, Reduced Bore
Process Connection TypesSW, NPT, BW, RF, RTJ

Product Details

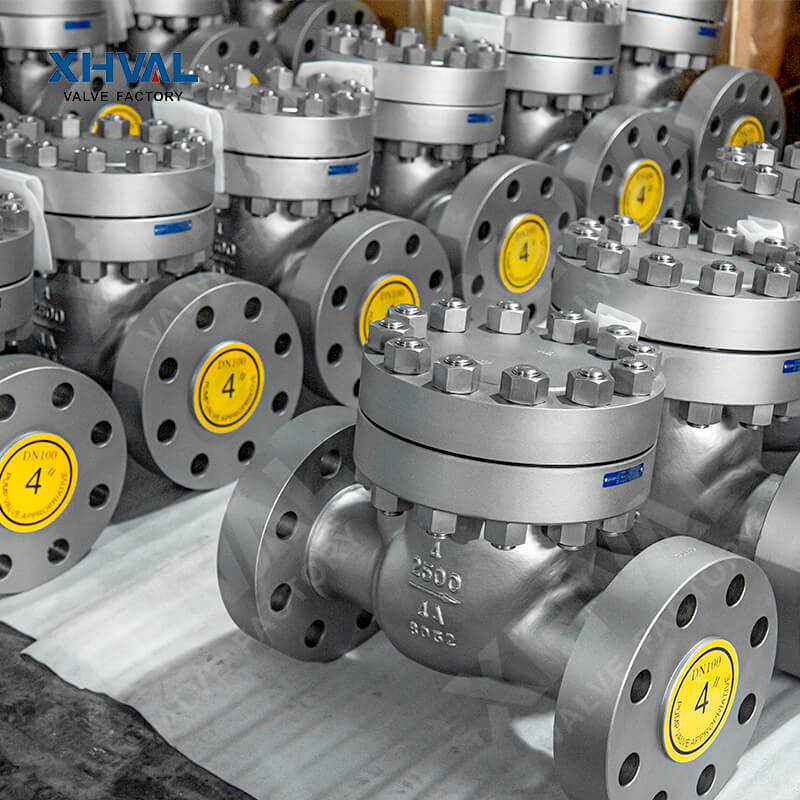

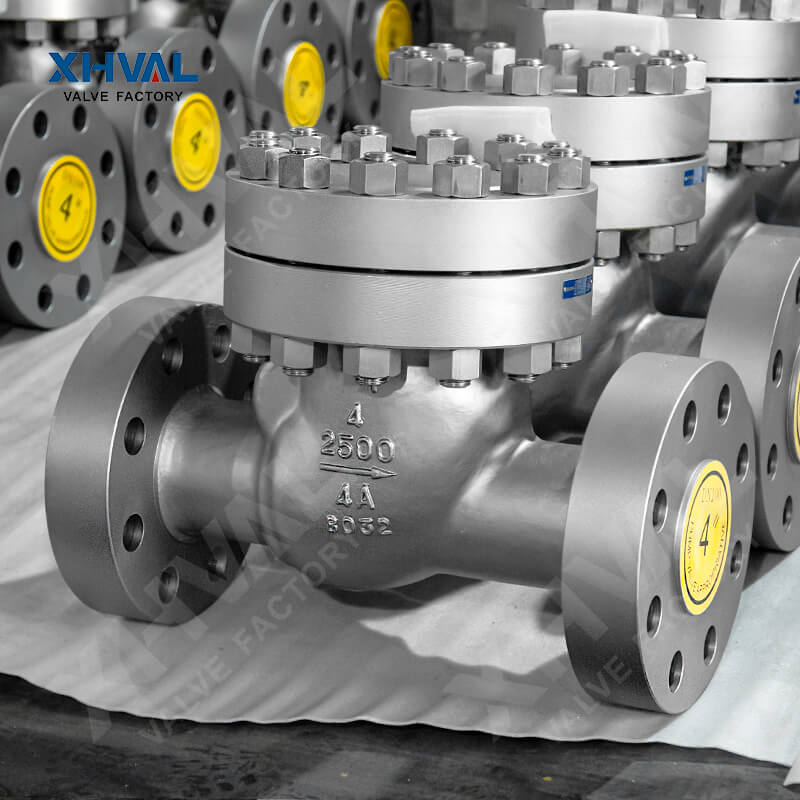

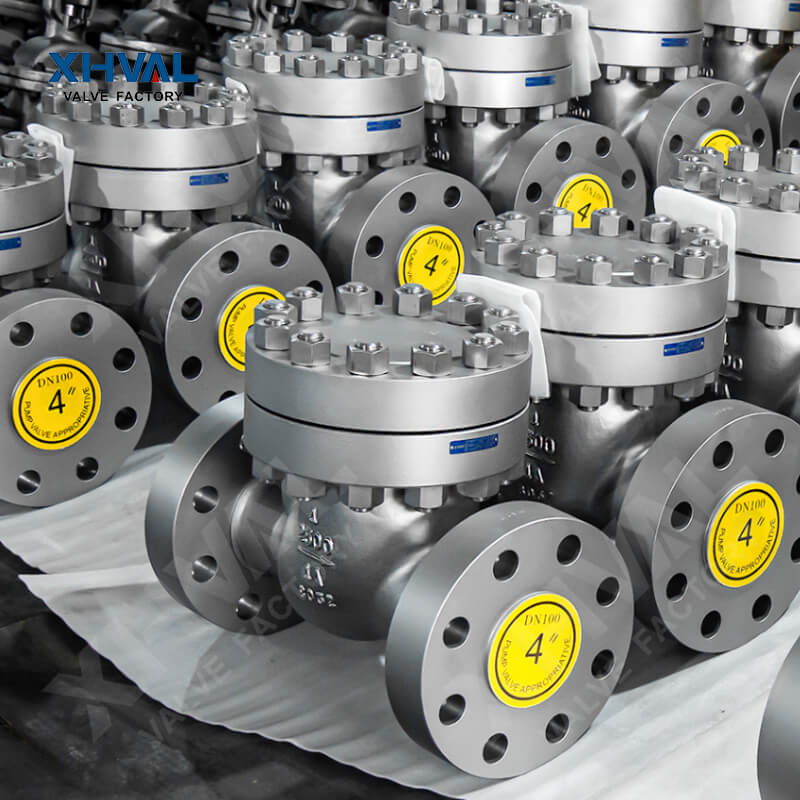

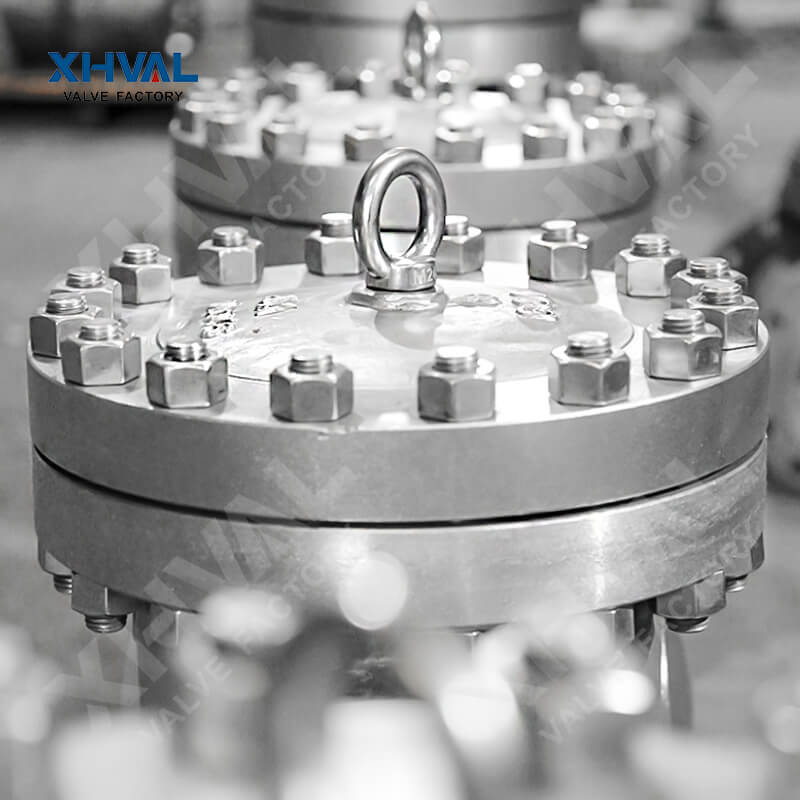

forged steel check valve
