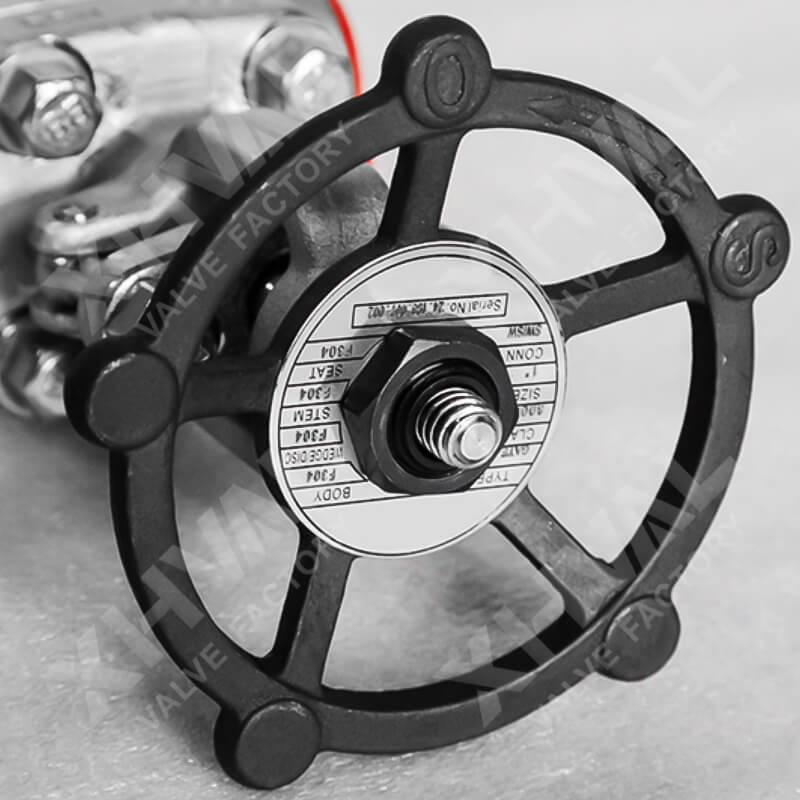

Forged steel globe valve
A range of ASME class 800 and 1500 reduced bore forged steel valves with screwed, socket weld, butt weld or flanged ends
Introduction
Forged steel globe valve
ASME 150-2500
Designed for ASME Boiler and Pressure Vessel Code, Section I applications including vents, drains, by-pass systems, instrument isolation, control valve isolation, auxiliary steam lines, heat exchangers and oil and gas applications wherever reliable, leak-tight performance, under high temperature/pressure conditions, is required. XHVAL provides more globe vlaves for your unique application.
| Valve Size |
| 1/4“–2”， DN10–DN50 |
| Pressure Class |
| 150LB–2500LB，PN16–PN420 |
| Materials |
| Carbon Steel: A105, LF2，Stainless Steel: F304, F304L, F316, F316L，Duplex: F51, F55,Alloy: F1, F5, F5A, F9, F11, F22; |
| Design and Manufacturing Standards |
| API602，ASME 16.34，BS 5352，BS 6364; |
| Face to Face Standards |
| API 602 |
| Flange Dimension Standards |
| SW Socket welding ends according to ASME B16.11，BW butt end by ASME B16.25, NPT threaded connectors according to ASME B1.20.1 |
| Pressure Test Standards |
| API 598 |
| Fire Safety Test Standards |
| – |
| Quality/Product Certifications |
| ISO9001,ISO14001,ISO18001; |
| Fugitive Emissions |
| ISO 15848-1，API 622; |
| NACE |
| NACE MR 0103 NACE MR 0175; |
| Valve operator options |
| Handwhel， Worm Gear，Electric actuator， Pneumatic actuator，Hydraulic Actuator; |
| Shutoff Class |
| API 598 (Zero Leakage), API 6D |
| Bore |
| Full Bore，Reduced Bore |
| Process Connection Types |
| – |
