Introduction
Ball valves are everywhere—in your home, your workplace, and nearly every industrial plant or pipeline system you can think of. But unless you’re in the field, you might not realize how essential these simple-looking components really are.
So what is a ball valve used for? That’s what this guide will break down clearly, with no jargon and no fluff.
In this article, I’ll walk you through:
- How ball valves work
- The core functions they serve
- Where they’re used across industries and systems
- Why engineers prefer them in certain situations
- The most frequently asked questions about their use
Whether you’re new to industrial valves or want a quick refresher, this article is for you.
What Is a Ball Valve and How Does It Work?
A ball valve is a type of shut-off valve that controls the flow of liquids or gases through a pipeline using a rotating ball with a central bore. When the ball is aligned with the flow path, fluid passes through freely. When rotated 90 degrees, the solid part of the ball blocks the flow completely.
Key Characteristics:
- Quarter-turn operation: Rotating the handle 90° opens or closes the valve
- Tight sealing: Especially in low-pressure or clean fluid systems
- Minimal pressure drop: Unlike globe or needle valves, the flow path is almost straight
- Durable and low-maintenance: Often used for infrequent on/off operations
Ball valves come in various body styles (one-piece, two-piece, three-piece), but the core mechanism remains the same: a precision-drilled ball rotates inside a valve body to allow or stop flow.

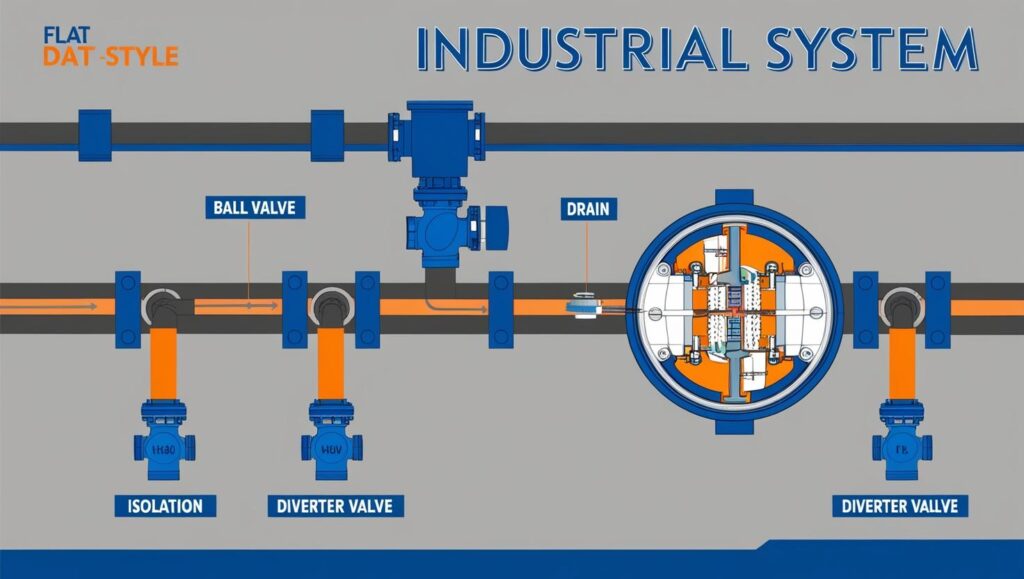

Common Uses of Ball Valves
Ball valves are valued for their simplicity, durability, and fast shut-off capability—which makes them useful in a wide range of systems and industries. Below are the most common functions they serve in real-world applications.
1. Shut-Off / Isolation
This is the most common use for a ball valve.
- Ball valves are installed in pipelines to completely stop flow when necessary.
- They’re perfect for maintenance operations or emergency stop situations where a system must be shut off instantly.
Example: A ball valve placed just after a water meter to isolate the house’s internal piping.
2. Emergency Safety Control
- In critical systems like gas lines or industrial fluid circuits, ball valves can be used as emergency shut-offs.
- Their fast quarter-turn operation is ideal when time matters.
Example: Ball valves in fuel or chemical systems designed to be closed manually or remotely in case of leaks.
3. Flow Diverging / Switching (3-Way Ball Valves)
- Multi-port ball valves (e.g., 3-way or 4-way) are used to redirect flow from one pipeline to another.
- Great for fluid distribution networks where flow direction changes are needed.
Example: Switching between two tanks in a liquid processing plant using a single valve body.
4. Draining or Purging
- Ball valves are used at the lowest point in a system to drain fluids, purge air, or evacuate residue.
- They’re commonly found in boilers, tanks, and air compressor systems.
Example: A small brass ball valve at the bottom of a compressed air tank to release accumulated moisture.
5. Limited Throttling (With Caution)
- Ball valves can be used to regulate flow partially, but they’re not ideal for precision throttling.
- If left partially open for long periods, turbulence and wear may occur on the ball and seats.
Table: Common Use Cases of Ball Valves
| Function | Description | Ideal Ball Valve Type |
|---|---|---|
| Shut-off | Quickly stops flow in either direction | 2-piece floating ball valve |
| Emergency shut-off | Fast manual or automated shutoff in critical lines | Fire-safe, full-port valve |
| Flow switching | Directs flow between outlets | 3-way or 4-way ball valve |
| Draining / Purging | Removes condensate or fluid from system | Compact mini ball valve |
| Limited throttling | Partial flow control (short-term use only) | V-port ball valve (if needed) |
Applications in Different Systems and Industries
Ball valves aren’t limited to just one type of environment—they’re used across a wide range of industries and fluid systems because of their versatility, durability, and ease of operation.
Below are some of the most common system-level applications where ball valves play a vital role.
Water Supply & Plumbing Systems
- Used in residential, commercial, and municipal piping
- Main shut-off valves for incoming water lines
- Drain valves on water heaters, tanks, and filters
- Common material: brass or stainless steel
Example: A 1/2” ball valve installed under the kitchen sink to isolate the cold water line.
️HVAC Systems (Heating, Ventilation, Air Conditioning)
- Found in chilled water loops, boiler return lines, and fan coil units
- Used to isolate individual zones or bypass sections during maintenance
- Full-port ball valves minimize pressure drop in closed-loop systems
Example: Ball valve used to isolate a hydronic heating zone during servicing.
️Oil & Gas Pipelines
- Common in fuel lines, separators, storage tanks, and processing units
- High-pressure or fire-safe trunnion-mounted ball valves are often used
- Their tight sealing is critical in preventing flammable leaks
Example: Remote-operated ball valve used to shut off flow at a pipeline junction station.
Chemical Processing Systems
- Installed in chemical reactors, mixing tanks, and distribution manifolds
- Must handle corrosive or hazardous fluids—requiring special materials like PTFE-lined or alloy ball valves
- Often used in multi-port configurations for batch control
Example: 3-way ball valve directing acid solution to different cleaning lines in a CIP system.
Compressed Air and Pneumatic Systems
- Serve as drain valves on air tanks or safety shut-offs on airline tools
- Small, lightweight ball valves are ideal for pneumatic control panels
- Fast shutoff keeps downstream tools protected from pressure surges
Example: A compact mini ball valve on an air compressor moisture trap.
Food & Beverage Production
- Used for fluid transfer, cleaning cycles, and process control
- Hygienic stainless steel ball valves with tri-clamp connections are standard
- Require smooth internal finish and sanitary-grade seals
Example: Ball valve controlling beer flow between fermentation tanks and packaging line.
Why Choose a Ball Valve Over Other Types?
With so many valve types available—gate, globe, butterfly, plug—why do engineers so often choose the ball valve?
It comes down to a unique combination of speed, tight sealing, and simplicity. Let’s compare ball valves to some of the most commonly used alternatives.
Ball Valve vs Gate Valve
| Feature | Ball Valve | Gate Valve |
|---|---|---|
| Opening time | Quarter turn (fast) | Multiple turns (slow) |
| Flow path | Full bore (low resistance) | Straight when fully open |
| Sealing | Very tight | Less reliable at low pressure |
| Wear over time | Minimal with infrequent use | Seat damage from partial open |
| Best used for | Quick shut-off | Long-run isolation valves |
✅ Use ball valves when fast operation and tight sealing are essential.
❌ Gate valves are better for systems left fully open or closed for long periods.
Ball Valve vs Globe Valve
| Feature | Ball Valve | Globe Valve |
|---|---|---|
| Throttling ability | Poor (not designed for it) | Excellent |
| Flow resistance | Very low | Moderate to high |
| Structure complexity | Simple | Complex (more moving parts) |
| Maintenance | Low | Medium to high |
| Best used for | On/Off operation | Flow regulation |
✅ If your goal is to start/stop flow reliably, use a ball valve.
❌ For precise flow control, globe valves are more appropriate.
Ball Valve vs Butterfly Valve
| Feature | Ball Valve | Butterfly Valve |
|---|---|---|
| Size efficiency | Compact | More compact for large diameters |
| Sealing strength | Better at low pressure | May leak slightly under low pressure |
| Cost | Moderate | Low (especially in large sizes) |
| Flow path obstruction | None (full port) | Slight (disc remains in flow) |
| Best used for | Clean fluids, critical shutoff | Large diameter lines, tight spaces |
✅ Choose ball valves for tight shut-off in smaller lines.
❌ Butterfly valves are better for large pipes with space constraints.
Comparison Table Summary
| Valve Type | Shut-Off Speed | Flow Resistance | Throttling | Maintenance | Best For |
|---|---|---|---|---|---|
| Ball Valve | ✅✅✅ | ✅✅ | ❌ | Low | Quick shut-off, clean fluids |
| Gate Valve | ❌ | ✅✅ | ❌ | Medium | Large pipelines, slow operation |
| Globe Valve | ❌ | ❌ | ✅✅✅ | High | Throttling/flow control |
| Butterfly Valve | ✅✅ | ✅ | ✅ | Low | Compact large-pipe systems |
Final Word
Ball valves may not be the best at everything—but for clean, quick shut-off needs, especially in low-pressure or frequently accessed systems, they often come out on top.
When to Use a Ball Valve
Now that you understand what a ball valve does and how it compares to other types, the next logical question is: When is it the right choice?
Here are the most common scenarios where ball valves are not just suitable—they’re ideal.
When You Need Quick Shut-Off
Ball valves open and close with a simple quarter-turn, making them perfect for:
- Emergency stops
- Manual system isolation
- Operator convenience
Example: A worker can instantly cut off fuel flow with a single twist during an equipment fault.
When You Want Minimal Pressure Drop
Full-port ball valves offer almost zero flow restriction, which is ideal in:
- Recirculating systems (e.g., chilled water loops)
- High-efficiency pump lines
- Flow-sensitive process equipment
Example: Ball valves in HVAC loops prevent unnecessary head loss in pumps.
When Space Is Limited
Because they operate with a simple lever turn, ball valves require less clearance than rising-stem gate valves or large butterfly handles.
Example: Under-sink shut-offs, compressor panels, and wall-mounted installations.
When Clean, Non-Slurry Fluids Are Used
Ball valves perform best when handling clean water, gas, oil, or air. They are not ideal for:
- Dirty or viscous fluids (can cause seat wear)
- Abrasive slurries (risk of internal scoring)
- High-cycle throttling (not their design purpose)
When System Simplicity & Durability Matter
Ball valves are low-maintenance and durable. They’re often the go-to for:
- Infrequent operation with reliable sealing
- Long-term installations with minimal service needs
- Systems that benefit from one-piece compact design
Types of Ball Valves and Where They’re Used
Not all ball valves are created equal. Depending on the design, port type, and internal structure, ball valves can be optimized for different applications—from basic plumbing to high-pressure chemical systems.
Let’s take a closer look at the major types and where each one fits best.
By Internal Structure
Floating Ball Valve
- The ball is suspended by two seats and allowed to “float” slightly under pressure, pressing against the downstream seat for sealing.
- Best for: Low to medium pressure, bidirectional shut-off
Example: Water treatment systems and residential plumbing
Trunnion-Mounted Ball Valve
- The ball is anchored at the top and bottom, ideal for high-pressure or large-diameter applications.
- Best for: Oil & gas pipelines, chemical plants
Example: Mainline fuel shut-off in petrochemical systems
️By Port Design
Full-Port (Full Bore)
- The internal bore is the same size as the pipe, eliminating flow restriction.
- Best for: Systems where flow rate and low pressure drop matter
Example: HVAC closed-loop water lines, process dosing
Standard Port
- Slightly smaller bore than pipe, introduces minimal restriction.
- Best for: General use where pressure loss isn’t critical
Example: General plumbing and compressed air lines
By Functionality
V-Port Ball Valve
- Precision-shaped ball opening allows throttling or flow modulation.
- Best for: Industrial process control where flow needs to be adjusted
Example: Chemical batching systems or temperature control loops
Three-Way & Four-Way Ball Valves
- Multi-port design enables flow switching, mixing, or diversion.
- Best for: Complex distribution setups
Example: Switching between tanks or alternating flow paths
Table: Types of Ball Valves & Typical Applications
| Type | Description | Common Applications |
|---|---|---|
| Floating Ball Valve | Simple, bi-directional shutoff | Water, air, residential plumbing |
| Trunnion-Mounted Valve | Anchored ball for high pressure | Oil, gas, high-pressure fluid pipelines |
| Full-Port Valve | No flow restriction | HVAC, food processing, pump lines |
| Standard-Port Valve | Slight restriction, cost-effective | Air tools, home plumbing |
| V-Port Valve | Allows throttling / flow control | Mixing systems, batching processes |
| Three-Way Ball Valve | Switches or combines flow between outlets | Tank switching, sample loops |
FAQs: Ball Valve Application & Use Cases
Here are real questions people ask when considering ball valves—gathered from Google, Reddit, and engineering forums—along with clear, straightforward answers.
What does a ball valve do?
A ball valve controls flow by rotating a hollow ball inside the valve body. When the hole in the ball aligns with the pipe, flow passes through. When rotated 90°, the solid side of the ball blocks the flow completely.
Can ball valves be used for gas systems?
Yes—but make sure the valve is rated for gas service. Look for:
- Certified pressure ratings
- Approved materials (e.g., brass, stainless)
- Fire-safe or anti-static design (for industrial gas)
Ball valves are commonly used in natural gas shut-offs, propane lines, and oxygen supply systems.
Are ball valves suitable for high-pressure lines?
Yes, especially trunnion-mounted or metal-seated ball valves. These are designed for:
- Oil & gas pipelines
- High-pressure steam
- Industrial fluid systems
Always check the valve’s ANSI or PN pressure class rating.
Can I use a ball valve for throttling flow?
Not ideally. Ball valves are meant for on/off control. Throttling with a standard ball valve can cause:
- Seat erosion
- Cavitation
- Reduced service life
If throttling is needed, consider a V-port ball valve specifically designed for this purpose.
Why use a ball valve instead of a gate valve?
Ball valves offer:
- Faster operation (quarter turn)
- Better sealing (especially in low pressure)
- Smaller installation footprint
Gate valves are better for slow changes in flow or large-diameter isolation in rarely adjusted systems.
What industries use ball valves most?
- Oil & gas
- HVAC
- Water and wastewater
- Chemical processing
- Food and beverage
- Pharmaceutical manufacturing
- Marine and shipbuilding
Ball valves are one of the most universally applied valves in engineering today.
Conclusion: Ball Valve Uses in a Nutshell
Whether you’re dealing with compressed air, water, gas, or industrial chemicals—ball valves offer one of the most reliable and efficient ways to control flow.
Let’s quickly recap what we’ve covered:
- Ball valves are used for shut-off, flow diversion, draining, and occasionally throttling
- They’re applied in HVAC, plumbing, oil & gas, food processing, and chemical systems
- Engineers choose ball valves for their fast operation, low maintenance, and strong sealing performance
- Different designs (floating, trunnion, V-port, multi-port) match different pressure and flow requirements
When you need a valve that’s simple, secure, and service-friendly, a well-specified ball valve will rarely let you down.
Looking for Reliable Industrial Ball Valves?
At XHVAL, we supply precision-manufactured ball valves trusted in industries worldwide—from high-pressure petrochemical lines to sanitary fluid handling systems.
→ Explore Our Full Range of Ball Valves
→ Contact Us for Application Support & Custom Valve Solutions
Let our team help you choose the right ball valve for your exact system needs.
