Introduction
If you’ve ever browsed specifications for ball valves, you’ve likely come across the term “full port”—sometimes also called full bore or full flow. But what does that really mean, and why should it matter to you?
A full port ball valve is designed with a bore size that matches the inner diameter of the connected pipe. This feature ensures maximum flow with minimal pressure drop, making it ideal for systems where flow efficiency is critical.
In this guide, we’ll walk through:
- What defines a full port ball valve
- How it compares to standard and reduced port designs
- Where it’s best applied—and where it might be unnecessary
- The trade-offs you should consider
- Frequently asked questions from real engineers and system designers
Let’s start with the basics.

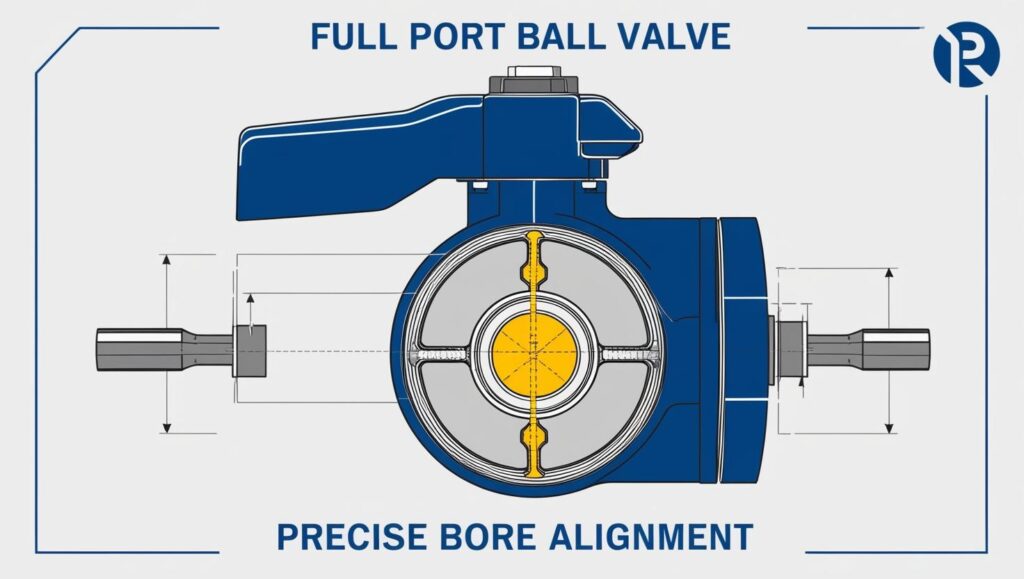

What Is a Full Port Ball Valve?
A full port ball valve (also known as full bore) is a type of valve in which the ball’s internal opening (bore) is the same size as the pipe it’s connected to. This design ensures that when the valve is fully open, there is no flow restriction—the fluid flows through as if there’s no valve at all.
Key Characteristics:
- Bore = Pipe ID (e.g., 2″ valve = 2″ ball bore)
- Minimal flow resistance
- No internal narrowing in the flow path
- Often used in high-flow, low-pressure-drop systems
This differs significantly from standard port or reduced port valves, where the ball opening is narrower than the pipe, causing flow restrictions and pressure drops. We’ll explore that next.
Full Port vs Standard Port: What’s the Difference?
The core distinction between a full port and a standard (or reduced) port ball valve lies in the internal bore diameter of the valve ball relative to the pipe it connects to.
Let’s break it down visually and functionally.
Structural Comparison
| Valve Type | Ball Bore Size | Flow Restriction | Common Use Cases |
|---|---|---|---|
| Full Port | Same as pipe ID | None | Slurry, CIP systems, low ΔP systems |
| Standard Port | ~70–80% of pipe ID | Moderate | Compressed air, water supply, general |
| Reduced Port | Significantly smaller | High | Budget-limited or low-flow systems |
⚙️ How This Affects Flow
- A full port valve maintains system-wide diameter and minimizes turbulence, pressure drop, and flow restrictions.
- A standard port valve, while more compact and affordable, introduces a smaller flow path, leading to higher velocity through the valve and potential energy loss.
This can matter greatly in sensitive systems like:
- Slurry or viscous fluids
- Pump-critical loops
- Systems with high flow rate consistency needs
Flow Performance Comparison (Example: 2″ Pipe System)
| Spec | Full Port Valve | Standard Port Valve |
|---|---|---|
| Bore Diameter | 2.00″ | 1.50″–1.60″ |
| Flow Coefficient (Cv) | ~150 | ~110 |
| Estimated Pressure Drop | Low | Medium–High |
Summary
- Full port = maximum flow, minimal pressure loss
- Standard port = cost-efficient, but with performance trade-offs
- Choose based on system criticality: If flow efficiency matters, go full port
How Port Size Affects Flow and Application
The size of the valve port has a direct impact on how efficiently a fluid moves through your piping system. Whether you’re managing a high-flow industrial process or a compact residential installation, choosing the right port size affects not just flow rate, but also system pressure, energy usage, and long-term reliability.
Why Full Port Improves Flow
Because a full port valve has no internal diameter reduction, it provides
- Unobstructed fluid movement
- Lower pressure drop (ΔP) across the valve
- Improved pump efficiency, especially in long piping runs
- Reduced chances of clogging or turbulence, ideal for thick or particulate-laden fluids
️
️Where Full Port Valves Are Ideal
| Application Scenario | Why Full Port Helps |
|---|---|
| Slurry or viscous fluids | Reduces clogging risk, allows full-bore flushing |
| Clean-in-place (CIP) | Ensures flow path is consistent with pipe for cleaning |
| Low-pressure-drop systems | Maintains pump head and energy efficiency |
| Flow-sensitive process lines | Keeps consistent Cv and minimizes turbulence |
| High-velocity lines | Prevents erosion and cavitation from sudden contraction |
Where Standard Port May Be Sufficient
- Compressed air lines (non-critical flow loss)
- Water supply for general use
- Space-constrained installations
- Systems with low flow volume or infrequent operation
In these scenarios, cost, size, and availability may outweigh the need for full bore performance.
Summary
- Full port = better for performance-critical or sensitive systems
- Standard port = sufficient for general-purpose and space-constrained systems
- Always weigh flow efficiency vs. system cost and size
Pros and Cons of Full Port Ball Valves
Like any engineering decision, choosing a full port ball valve comes with trade-offs. While it offers clear performance advantages in certain applications, it may not always be the best—or most cost-effective—choice.
Here’s a breakdown of the key advantages and limitations to help guide your decision.
Advantages of Full Port Valves
| Advantage | Explanation |
|---|---|
| Minimal flow restriction | Full bore eliminates bottlenecks—ideal for high-flow applications |
| Lower pressure drop | Reduces energy loss and pump workload, especially in long systems |
| Easy cleaning and flushing | Flow path allows for proper CIP, pigging, or flushing in sanitary pipelines |
| Improved process control | More consistent flow coefficient (Cv) across valve positions |
| Better for viscous or slurry media | Reduces turbulence, erosion, and potential clogging |
Limitations of Full Port Valves
| Limitation | Explanation |
|---|---|
| Larger physical size | Full bore requires a bigger valve body, which may not fit in compact spaces |
| Higher cost | More material = more expensive, especially in stainless or exotic alloys |
| Higher operating torque | Larger ball = greater resistance in manual operation or actuator selection |
| May be unnecessary | For low-flow or intermittent-use systems, the benefits may not justify cost |
Table: Pros and Cons Summary of Full Port Valves
| Criteria | Full Port Valve | Standard Port Valve |
|---|---|---|
| Flow Capacity | ✅ Maximum | ⚠️ Reduced (~70–80% of pipe ID) |
| Pressure Drop | ✅ Minimal | ⚠️ Medium to high |
| Size & Weight | ⚠️ Larger | ✅ Compact |
| Cost | ⚠️ Higher | ✅ More economical |
| Best For | Slurry, CIP, full-flow systems | General water/air lines, HVAC |
Summary
- Full port = performance-focused choice with size and cost trade-offs
- Don’t over-spec: only choose full port if your system demands it
- Standard port may be sufficient for many everyday applications
FAQs About Full Port Ball Valves
To help you make informed choices and clear up common misunderstandings, here are answers to some of the most frequently asked questions about full port ball valves.
Is a full port valve the same as a full bore valve?
Yes. The terms “full port” and “full bore” are used interchangeably. Both describe valves where the internal ball bore matches the pipe’s inner diameter, allowing unrestricted flow.
What’s the difference between a full port and a standard port valve?
- A full port valve has a ball opening equal to the pipe ID.
- A standard port valve has a smaller opening, causing a restriction in flow and higher pressure drop.
Refer to our comparison section for a full diagram and table.
When should I use a full port valve?
Use full port valves when your system requires:
- High flow rates with minimal pressure loss
- Slurry, viscous, or particulate-laden fluids
- Sanitary cleaning (CIP/SIP)
- Pumping over long distances or delicate fluid handling
Are full port valves always better?
Not always.
They are larger and more expensive. In systems where flow efficiency isn’t critical—like basic water lines or HVAC—a standard port is often sufficient.
Can I replace a standard valve with a full port valve?
Generally, yes—as long as there’s space to accommodate the larger body. Just make sure flange dimensions and pressure ratings match your existing system.
Is a full port valve more expensive?
Yes, due to:
- Larger body size
- More machining and material
- Often higher-grade seals (for demanding flows)
But the added cost is often justified in performance-critical systems.
Are full port valves required for compressed air systems?
Not necessarily.
Compressed air systems typically don’t require full port unless flow restriction is unacceptable. In most cases, a standard port valve works just fine.
Summary
- Use full port valves when flow matters most
- Understand your system’s space, cost, and efficiency requirements before selecting
- When in doubt—talk to your supplier or engineer for guidance
Conclusion: Is a Full Port Ball Valve Right for Your System?
Choosing between a full port and standard port ball valve isn’t just about flow—it’s about matching your valve to your system’s real-world needs.
Here’s what to remember:
- Full port ball valves offer unrestricted flow, reduced pressure drop, and better performance for demanding applications like slurry, CIP, and long-run pumping systems.
- Standard port valves are smaller, more economical, and suitable for less critical systems like compressed air or general-purpose plumbing.
There’s no one-size-fits-all answer—only the right choice for your specific flow, cost, and space requirements.
✅ Quick Summary: When to Use a Full Port Valve
| Use Case | Full Port Recommended? | Reason |
|---|---|---|
| Slurry, pulp, or viscous fluids | ✅ Yes | Prevents clogging, maintains consistent flow |
| Clean-in-place (CIP/SIP) systems | ✅ Yes | Full bore allows proper sanitation and fluid displacement |
| General-purpose water or air lines | ❌ Not always | Standard port typically sufficient and more compact |
| Cost- or space-constrained systems | ❌ No | Full port may be over-spec and oversized |
| Long runs with pressure-sensitive pumps | ✅ Often | Reduces head loss, improves pump efficiency |
