Introduction
Ball valves and butterfly valves are two of the most commonly used flow control devices in industrial piping systems. While they often serve the same function—starting or stopping fluid flow—their internal mechanisms, sealing performance, and ideal applications differ significantly.
In this guide, I’ll break down:
- How ball valves and butterfly valves differ structurally
- Their sealing and throttling capabilities
- Which valve is better for water, gas, steam, or high-pressure systems
- Practical advice on cost, size, and maintenance
- How to choose the right valve for your project or facility
Let’s start with the most fundamental difference: how they work.

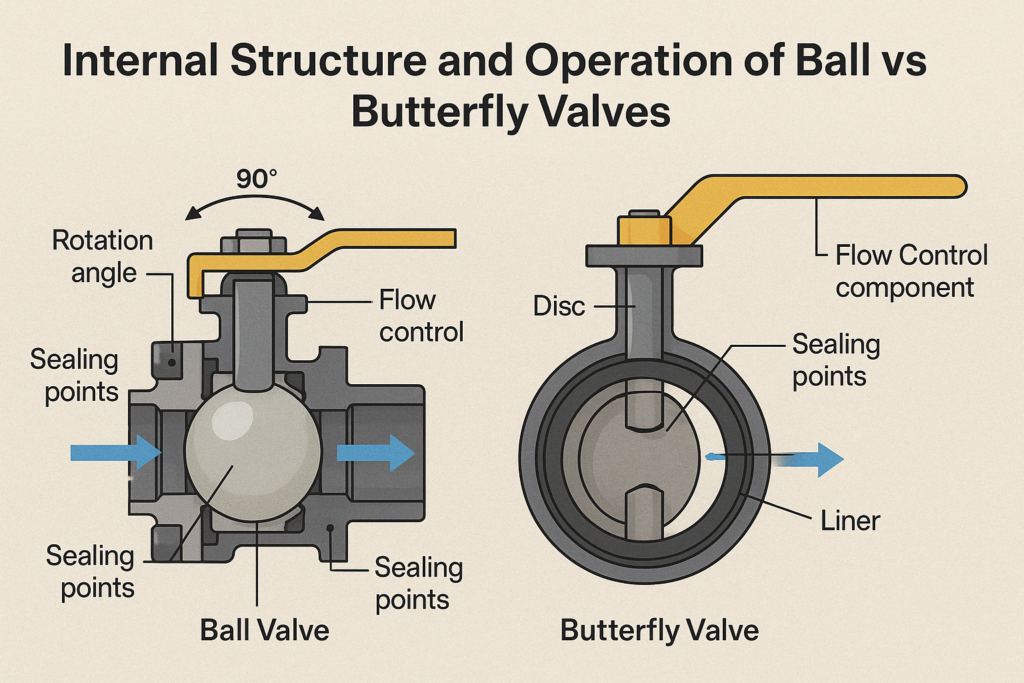

Structural Differences Between Ball and Butterfly Valves
Although both valve types are quarter-turn, the way they control flow and their internal structures are entirely different.

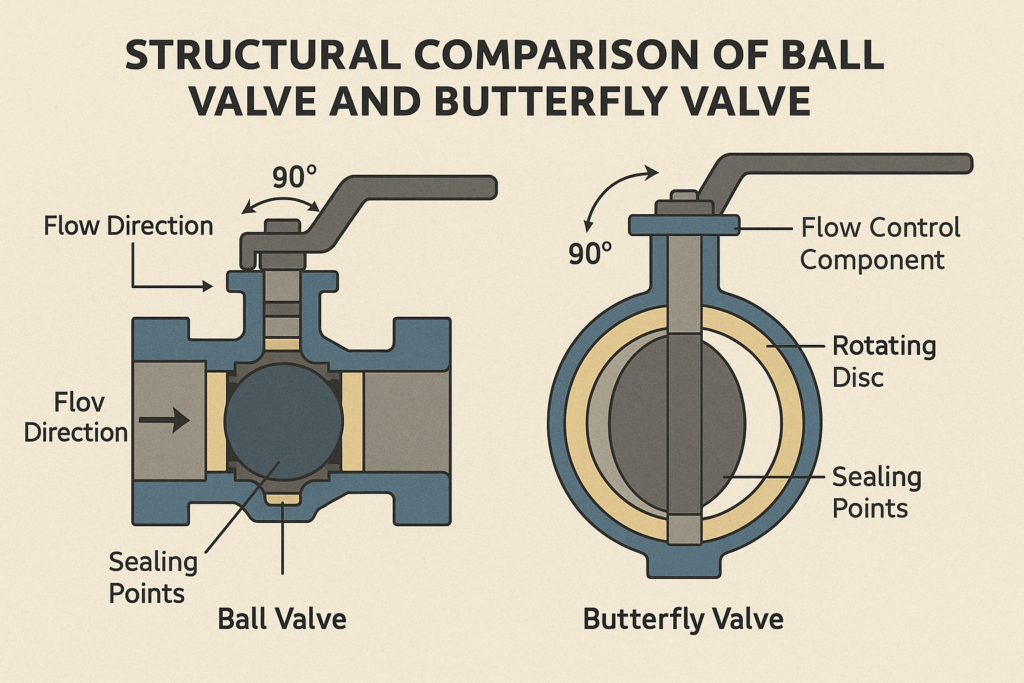

⚙️ Ball Valve Structure
- Contains a spherical ball with a central bore (hole)
- When the handle turns 90°, the ball rotates to align the hole with the pipeline = open
- Rotated 90° again, the solid side of the ball blocks flow = closed
- Seats on either side of the ball help provide a tight seal
Butterfly Valve Structure
- Features a flat disc (butterfly) mounted on a stem through the center of the pipeline
- When the handle turns 90°, the disc rotates from being parallel to perpendicular with the flow
- When perpendicular, the disc obstructs the flow completely
- The disc remains within the flow path even when open, potentially causing turbulence or pressure drop
⏱️ Operating Mechanism Summary
| Feature | Ball Valve | Butterfly Valve |
|---|---|---|
| Control Element | Solid spherical ball | Flat rotating disc |
| Rotation Angle | 90° quarter-turn | 90° quarter-turn |
| Flow Obstruction | Clear bore when open, full shutoff | Disc in flow path even when open |
| Seal Mechanism | Ball pressed against seat | Disc pressed against liner or seat |
| Installation Space | Larger due to full ball chamber | Compact, shorter face-to-face distance |
In short: ball valves offer better shutoff and cleaner internal flow when open, while butterfly valves are more compact and lightweight.
Sealing Performance and Control Capability
When selecting between a ball valve and a butterfly valve, one of the most important considerations is how well each seals, and how much control it gives you over fluid flow.
Let’s compare both on these fronts.

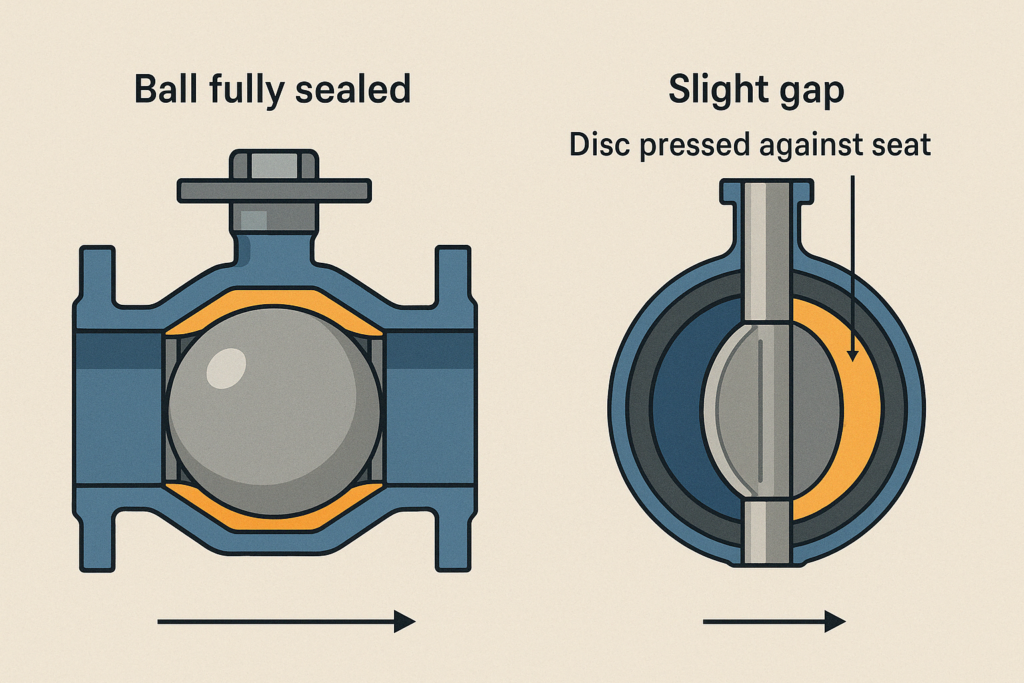

Sealing Performance
✅ Ball Valve
- Designed for tight shutoff—often rated for zero leakage
- Excellent sealing due to ball being pressed firmly against seats
- Commonly used in applications requiring bubble-tight isolation, such as gas lines or high-pressure water systems
⚠️ Butterfly Valve
- Sealing depends on the disc-to-liner contact, which may degrade over time or under high pressure
- More likely to leak slightly, especially if improperly installed or used for abrasive media
- Suitable for applications where minor leakage is acceptable
Flow Control & Throttling
⚙️ Ball Valve
- Primarily used for on/off control
- Not ideal for throttling:
- Partial opening can erode seats
- Flow control is non-linear and harder to manage
Some specialty ball valves (e.g. V-port) allow limited throttling
Butterfly Valve
- Better suited for throttling applications
- Disc position allows for more linear control over flow
- Can handle partially open positions without significant damage
- Often used in HVAC, cooling water, and chemical dosing systems
Operating Torque
| Feature | Ball Valve | Butterfly Valve |
|---|---|---|
| Opening/Closing Torque | Higher | Lower |
| Torque Under Pressure | Increases rapidly | Relatively stable |
| Ease of Automation | Requires more force | Suitable for actuators |
- Ball valves often need larger actuators or gear operators, especially at high pressure
- Butterfly valves are lighter, faster, and easier to automate
Summary
If your system requires tight shutoff and zero leakage, choose a ball valve.
If you need flow modulation, lower torque, or automated control, a butterfly valve is usually more efficient.
When to Use Ball vs Butterfly Valves
Choosing the right valve type isn’t just about structure or sealing—it’s about fit for purpose. The media, pressure, temperature, and control requirements in your system determine which valve will perform best.
Let’s look at which valve to use based on application scenarios.

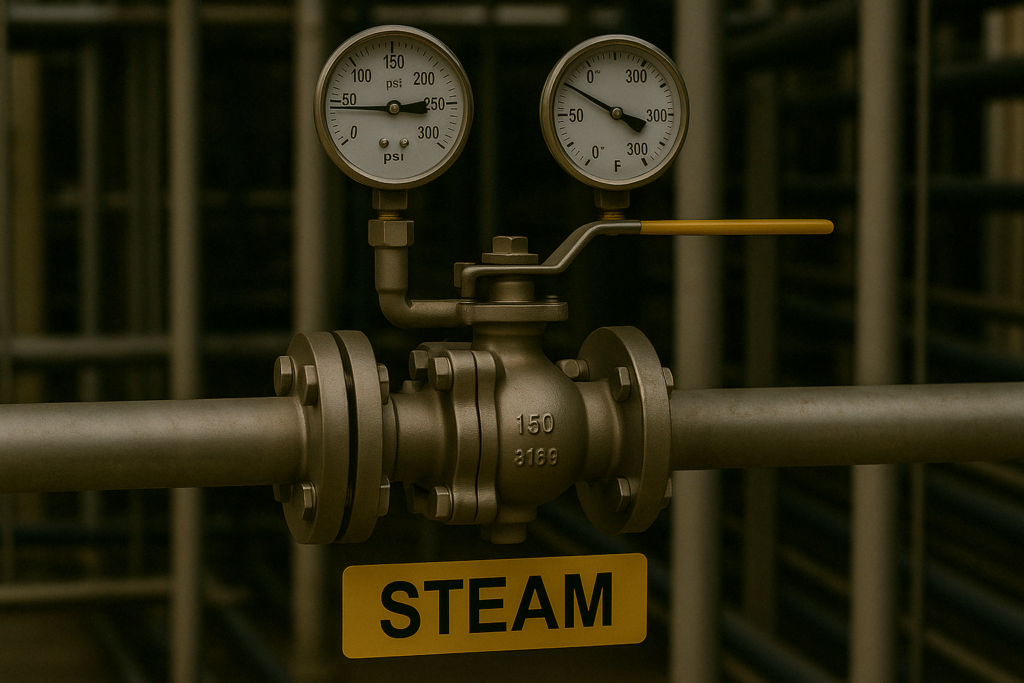

✅ When to Use a Ball Valve
Ball valves are best suited for applications that require:
- Tight shutoff with zero leakage tolerance
- High-pressure or high-temperature fluids
- Gas service (natural gas, compressed air, etc.)
- Oil, petrochemicals, or steam
- Occasional operation rather than frequent cycling
Common use cases:
- Fuel lines
- Steam isolation systems
- Chemical processing lines
- Natural gas distribution
- Marine systems

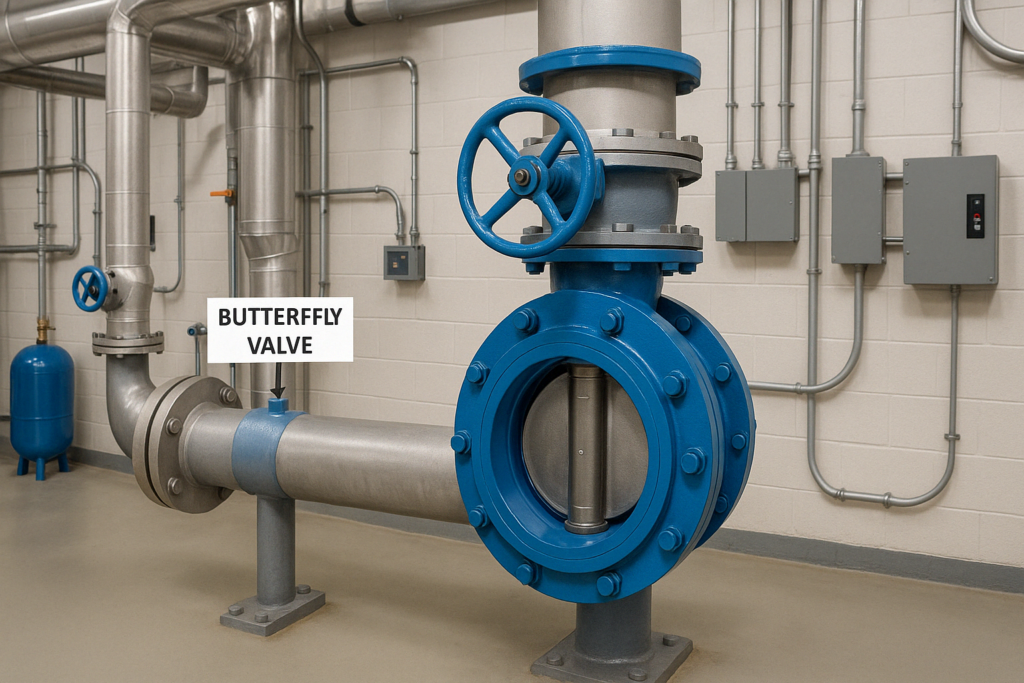

✅ When to Use a Butterfly Valve
Butterfly valves excel in:
- Large-diameter pipelines (DN200 and above)
- Low- to medium-pressure systems
- Applications that require frequent opening/closing
- Where space and weight are limited
- Flow throttling or modulation
- Clean water, HVAC, and slurry with low solids
Common use cases:
- Cooling water or chilled water loops
- HVAC and ventilation systems
- Irrigation and wastewater
- Fire protection lines
- Food and beverage industry (sanitary butterfly valves)
“Recommended vs Not Recommended” Comparison
| Scenario | Ball Valve | Butterfly Valve |
|---|---|---|
| High pressure (>150 psi) | ✅ Yes | ❌ Risk of leakage |
| Large diameter (>DN200) | ❌ Heavy & bulky | ✅ Lightweight |
| Precise flow throttling | ❌ Not ideal | ✅ Suitable |
| Gas service / zero-leak requirement | ✅ Preferred | ❌ Less reliable |
| Automated valve systems (low torque) | ❌ Torque-heavy | ✅ Automation-friendly |
Summary
Use ball valves when sealing and pressure handling are critical.
Choose butterfly valves when size, speed, or cost-efficiency matters.
Cost, Size, and Maintenance Considerations
Beyond performance, many engineers and procurement teams weigh valve cost, installation space, and maintenance requirements when deciding between a ball valve and a butterfly valve.
Here’s how they compare across these practical dimensions.
Cost Comparison
✅ Butterfly Valve
- Lower initial cost, especially for larger sizes
- Simple design = less material, fewer parts
- Often the go-to choice for budget-sensitive projects
⚠️ Ball Valve
- More expensive, particularly in stainless steel or high-pressure grades
- Higher cost justified in applications requiring tight shutoff and durability
Example: A DN100 butterfly valve might cost 30–50% less than a comparable ball valve at the same size and pressure rating.

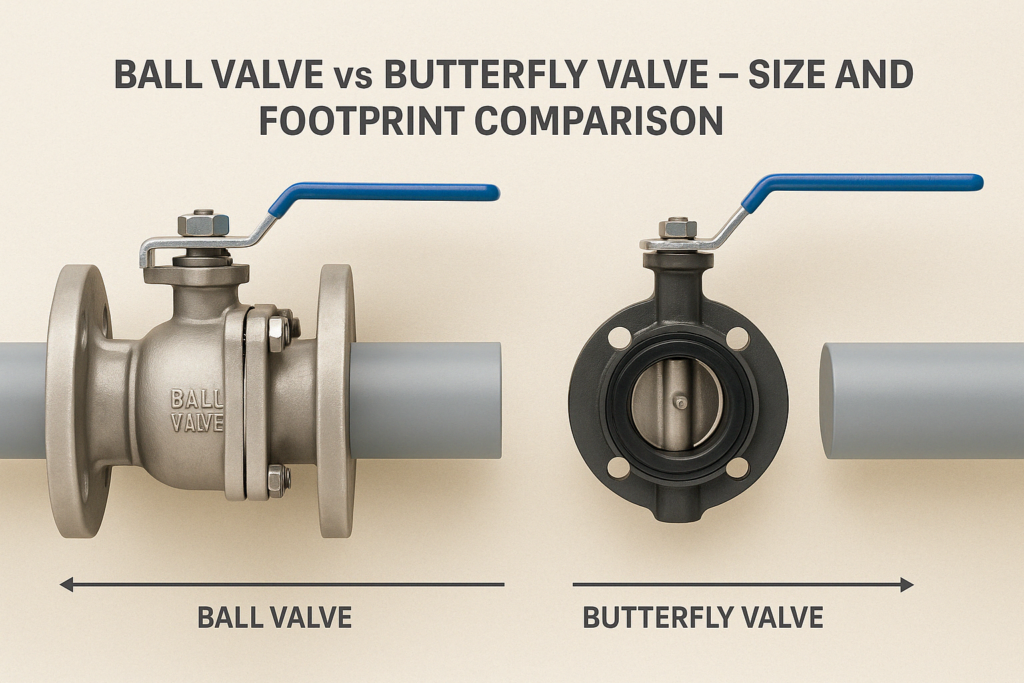

Size and Weight
✅ Butterfly Valve
- Compact design = reduced installation footprint
- Thinner profile fits tight piping spaces
- Ideal for wall-mounted or vertical pipelines
⚠️ Ball Valve
- Bulky body, especially in full-port or fire-safe designs
- Heavier, especially at larger diameters
- May require more robust pipe supports
Maintenance and Repair
| Feature | Ball Valve | Butterfly Valve |
|---|---|---|
| Maintenance Frequency | Low (if used properly) | Medium (seal wear over time) |
| Seat/Seal Replacement | May require full disassembly | Accessible with minimal teardown |
| Torque Wear | Higher under pressure | Lower overall |
| Cycle Durability | Excellent for occasional use | Better for high-cycling systems |
- Ball valves are very durable when used as on/off valves—but their internal seats may wear faster under partial opening or high-cycling
- Butterfly valves are easier to service in-line but may require more frequent seal replacement
Summary
Butterfly valves win on size, cost, and ease of access.
Ball valves offer better longevity under tough conditions, but at a higher price and footprint.
Which Valve Should You Choose?
Still unsure which valve is right for your system? Here’s a simplified decision guide to help you make the best choice based on performance priorities, application needs, and practical constraints.
✅ Choose a Ball Valve If You Need:
- Tight shutoff with zero leakage tolerance
- High-pressure or high-temperature operation
- Better performance for gas, steam, or compressed air
- Durability in corrosive or aggressive fluids
- Fewer open/close cycles, but high reliability
- Isolation of critical lines where full closure is essential
✅ Choose a Butterfly Valve If You Need:
- A cost-effective solution for large-diameter pipelines
- Compact, lightweight valves for tight spaces
- Fast operation with low torque and easy automation
- Basic throttling ability in water or HVAC systems
- Frequent cycling and easy maintenance access
- Service in clean water, low-pressure, or non-critical applications
At-a-Glance Comparison Table
| Criteria | Ball Valve | Butterfly Valve |
|---|---|---|
| Shutoff Seal Quality | ✅ Excellent (Zero leakage) | ⚠️ Good, but not bubble-tight |
| Throttling Ability | ❌ Not recommended (unless V-port) | ✅ Moderate, linear response |
| Best For | High pressure, gas, steam | Large diameter, water, HVAC |
| Torque Requirement | Higher | Lower |
| Automation Suitability | Requires larger actuator | Ideal for automation |
| Cost | Higher | Lower |
| Installation Space | Larger | Compact |
| Maintenance | Less frequent, more complex | More frequent, easier access |

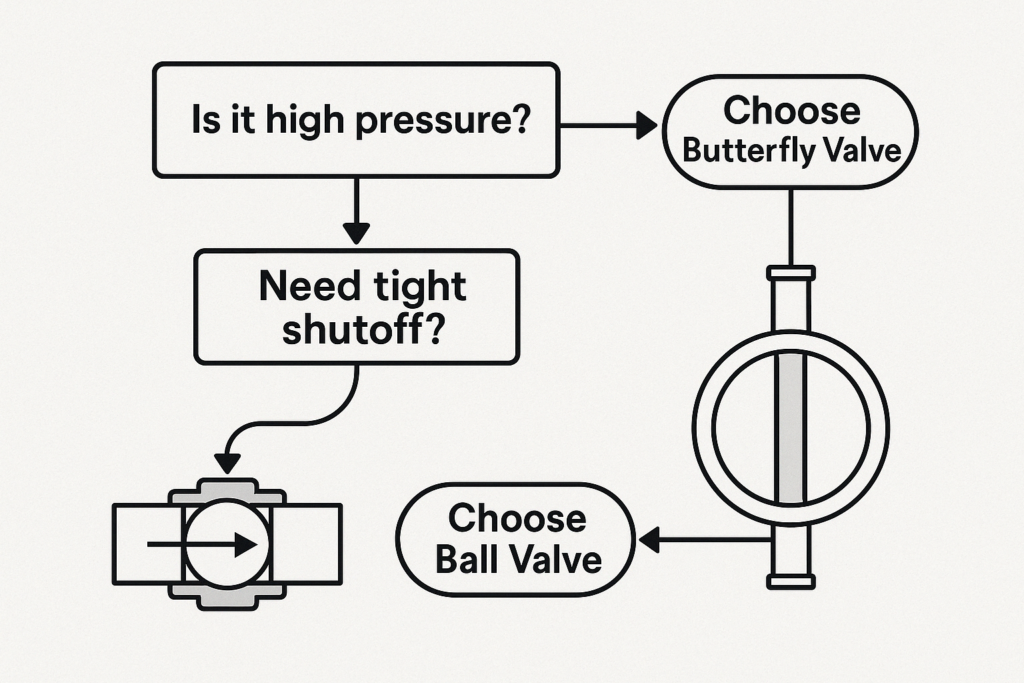

Visual Decision Tree (optional for illustration)
No valve is universally better—each has its strengths.
The best valve is the one that fits your specific media, pressure, space, and budget.
FAQs About Ball and Butterfly Valves
Here are clear answers to the most frequently asked questions users have when deciding between a ball valve and a butterfly valve.
What is the main difference between a ball valve and a butterfly valve?
A ball valve uses a rotating ball with a hole to block or allow flow, offering tight shutoff.
A butterfly valve uses a rotating disc to regulate flow, and it remains partially in the flow stream when open.
Which valve provides better sealing?
Ball valves typically offer better sealing, even achieving zero leakage when fully closed.
Butterfly valves can seal well too, but may allow minor leakage under high pressure or with worn seats.
Can a ball valve be used for throttling?
Not ideally. Standard ball valves are best for on/off control.
However, V-port ball valves can be used for controlled throttling in specialized applications.
Is a butterfly valve good for throttling?
Yes. Butterfly valves are better suited for flow regulation, especially in systems that do not require precise control.
They are often used in HVAC, cooling water, and process systems.
Which valve is better for gas or steam?
Ball valves are preferred due to their tight shutoff capability and resistance to thermal expansion.
Butterfly valves may struggle with sealing in high-pressure gas or steam lines.
Which valve is more cost-effective?
For large-diameter, low-pressure applications, butterfly valves are more economical.
Ball valves are more expensive but provide higher performance in demanding applications.
Which one lasts longer?
Ball valves generally offer longer service life in tough environments when used correctly.
However, butterfly valves are easier and cheaper to maintain in clean, low-pressure systems.
Tip: Always match the valve type to pressure class, fluid type, required precision, and budget. No single valve fits all situations.
Conclusion: Ball vs Butterfly Valve — Make the Right Call for Your System
Both ball valves and butterfly valves are widely used for a reason—but the right choice depends entirely on your system needs, performance expectations, and practical constraints.
Let’s recap:
- Choose a ball valve if you require tight shutoff, high-pressure handling, or zero leakage in gas, steam, or critical applications.
- Choose a butterfly valve if you want a cost-effective, space-saving, and automation-friendly solution—especially in large-diameter or low-pressure systems.
Don’t select a valve based only on price or appearance.
The wrong valve in the wrong system leads to leaks, downtime, and unnecessary maintenance.
✅ Quick Summary Table
| Decision Factor | Recommended Valve Type |
|---|---|
| Zero-leak gas or steam | ✅ Ball Valve |
| Budget-friendly large lines | ✅ Butterfly Valve |
| Space-constrained setup | ✅ Butterfly Valve |
| Throttling required | ✅ Butterfly Valve (basic control) |
| On/off isolation | ✅ Ball Valve |
| Frequent cycling | ✅ Butterfly Valve |
