Introduction
When it comes to certifying industrial ball valves, engineers and procurement teams often encounter two major API standards: API 6D and API 607. At first glance, these standards might seem interchangeable—but in reality, they serve very different purposes.
API 6D governs the design and performance of pipeline valves used in oil, gas, and chemical transportation. API 607, on the other hand, is all about fire safety—testing whether a valve can maintain its seal and structure when exposed to extreme heat.
In this guide, I’ll walk you through exactly what each standard covers, how they differ, where each applies, and whether your project needs both. By the end, you’ll have a clear, professional-level understanding of how API 6D and API 607 work—and how to choose the right one for your system.
What Is API 6D?
API 6D is one of the most widely recognized specifications for pipeline valves in the oil, gas, and petrochemical industries. Published by the American Petroleum Institute (API), this standard defines the design, manufacturing, testing, and documentation requirements for valves used in pipeline systems.

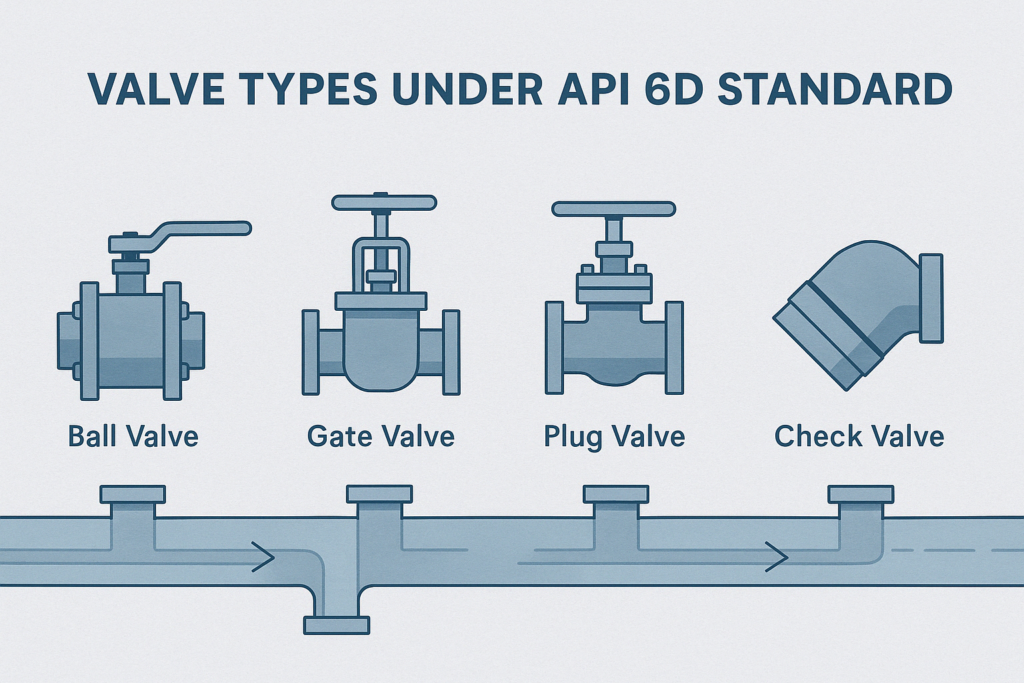

Key Scope of API 6D
API 6D covers a range of valve types used in pipeline transport systems, including:
- Ball valves
- Gate valves
- Plug valves
- Check valves
The focus of API 6D is not on fire resistance or extreme emergency conditions. Instead, it ensures the mechanical integrity and operational safety of valves under standard working pressures and temperatures typically found in buried or above-ground pipeline networks.
Common Requirements Include:
- Hydrostatic shell and seat tests
- Leak tightness under pressure
- Valve body wall thickness and design validation
- Traceable documentation and marking
Optional features like double block and bleed, piggable design, etc.
API 6D-certified valves are mandatory for long-distance pipeline projects, especially those regulated by North American, Middle Eastern, and other global pipeline safety agencies.
What Is API 607?
API 607 is a fire-test standard specifically designed for soft-seated quarter-turn valves, such as ball valves. It was developed by the American Petroleum Institute to address one critical question: Can a valve still function after being exposed to fire?
Unlike API 6D, which focuses on general design and performance under normal conditions, API 607 simulates an emergency fire scenario to test whether the valve can maintain its pressure-containing capability and tight shutoff after exposure to high temperatures.
Scope of API 607
The standard outlines the testing procedure for:
- Ball valves (quarter-turn)
- With nonmetallic seat materials (e.g., PTFE, graphite-filled polymers)
- In the open and closed positions
- Withstanding direct flame exposure for 30 minutes or more
After the burn phase, valves are cooled and leak-tested again to ensure they still meet sealing requirements. This ensures that even in catastrophic fire conditions—like refinery blowouts or offshore platform incidents—the valve will not allow flammable or toxic material to escape.
Why It Matters
Many projects, particularly in oil refineries, petrochemical plants, offshore rigs, and hazardous fluid transfer systems, require API 607 compliance in addition to other base certifications. API 607 certification is often seen as a critical fire-safety guarantee.
API 607 vs API 6D: Key Differences Explained
While both API 6D and API 607 are critical standards in the valve industry, they address completely different concerns. One focuses on overall valve performance and manufacturing consistency, while the other targets a specific and extreme safety scenario—fire exposure.
To help you quickly grasp the essential contrasts, here’s a side-by-side breakdown:
Comparison Table
| Criteria | API 6D | API 607 |
|---|---|---|
| Primary Focus | Valve design, performance, and functional testing | Fire-safe performance of soft-seated valves |
| Applies To | Ball, gate, check, plug valves (pipeline systems) | Quarter-turn valves (mostly ball valves) |
| Fire Testing | Not included | Required for certification |
| Test Conditions | Pressure, shell integrity, closure performance | Flame exposure, post-burn sealing performance |
| Industry Use | Pipeline transmission and transport | Oil refineries, offshore rigs, high-risk environments |
| Certification Outcome | Confirms valve suitability for pipelines | Confirms fire safety compliance |
Key Takeaway
These two standards are not interchangeable. A valve that meets API 6D may still fail under fire conditions if it hasn’t passed API 607. Conversely, a fire-tested valve (API 607) might not fulfill the operational or structural specifications outlined in API 6D.
In real-world projects, many end-users require valves to be certified to both standards, especially when safety and regulatory compliance are on the line.

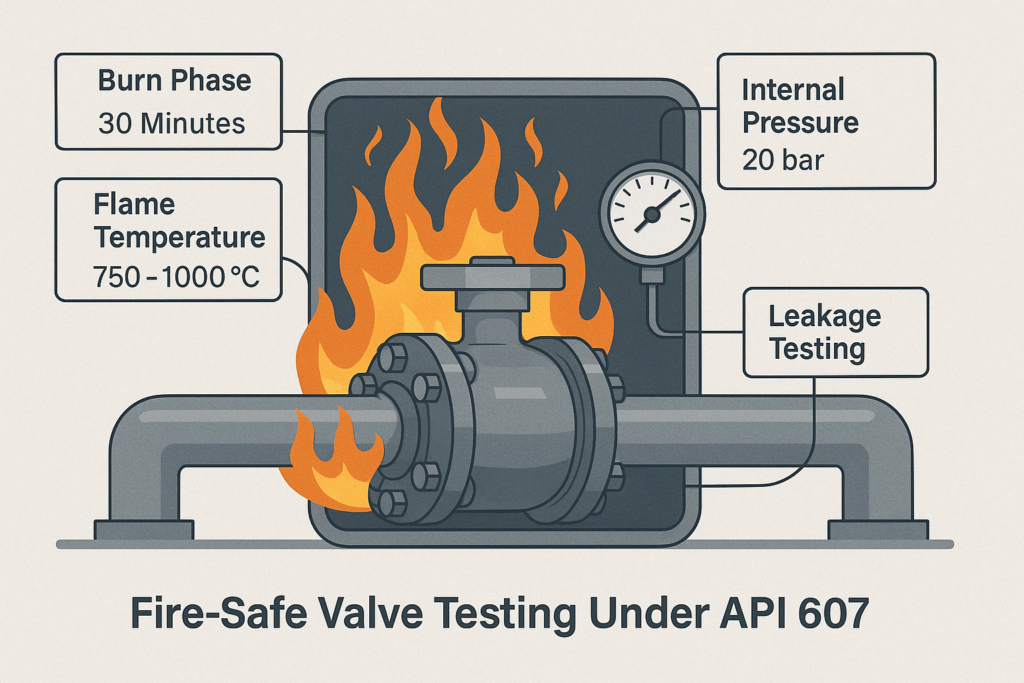

Fire Safety – What API 607 Really Tests
When dealing with hazardous environments—like offshore platforms, chemical plants, or refineries—fire is one of the worst-case scenarios engineers must prepare for. That’s where API 607 comes in.
This standard simulates a real-world fire event by exposing the valve to direct flame for a defined duration, then testing whether it maintains structural integrity and sealing performance.

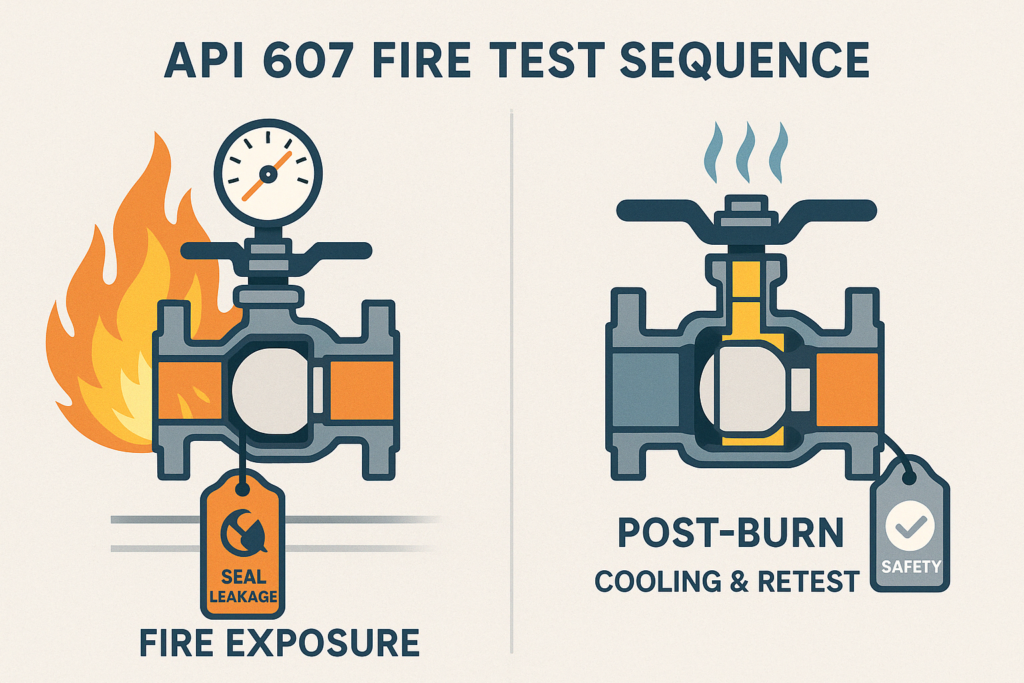

Breakdown of the API 607 Fire Test
The test procedure includes several critical phases:
1. Burn Phase
- The valve is subjected to open flame (up to 750–1000°C) for 30 minutes.
- The test is conducted with the valve in either fully open or fully closed position.
- Pressure is maintained inside the valve to simulate live service.
2. Cool-Down Phase
- After flame exposure, the valve is allowed to cool naturally.
- This step ensures thermal cycling is part of the performance challenge.
3. Leakage Test
- The valve is tested again to assess leakage from the body, stem, and seats.
- Acceptable leakage limits are defined in the standard.
Why It’s Critical
Valves with nonmetallic seats (like PTFE or nylon) are especially vulnerable to softening or failure under fire. API 607 ensures the valve’s backup sealing mechanism or metal seat can maintain isolation and prevent a disaster—even when the primary seat material is compromised.
When API 607 Is Required
- Systems handling flammable or toxic fluids
- Refinery units with high risk of exposure
- Offshore and marine platforms
- Chemical reactors and hazardous waste lines
Do You Need Both API 607 and API 6D?
One of the most common points of confusion among valve buyers is whether a valve must comply with both API 6D and API 607—or just one of them.
The answer? It depends entirely on your application and the project’s compliance requirements.
Can a Valve Be Certified to Both?
Yes. A valve can—and often should—be certified to both API 6D and API 607, if it:
- Meets all design and performance criteria under API 6D, and
- Successfully passes fire-safe testing under API 607
Manufacturers typically issue a dual certification if the valve is tested and documented against both standards. However, this usually applies to ball valves used in critical systems like pipelines running through fire zones, offshore platforms, or chemical facilities.
When Is API 6D Alone Sufficient?
If the valve is used in a buried pipeline, nonflammable media, or a controlled facility where fire exposure is extremely unlikely, then API 6D alone may be acceptable.
When Is API 607 Required in Addition?
You will likely need both standards in the following cases:
- The system handles flammable fluids
- The environment presents fire risk
- Project specifications, tenders, or EPC contracts explicitly call for “API 6D + Fire-safe certified valves”
In many project tenders—especially those in the Middle East, North America, and offshore markets—fire-safe certification has become a default requirement.
Summary Guidance
If you’re unsure, ask yourself:
- Is fire safety mentioned in the spec sheet?
- Is your medium flammable or toxic?
- Does the valve have nonmetallic seats?
If yes to any of these, you likely need both API 6D and API 607.
Where Each Standard Applies in Real Projects
Understanding where each standard fits in the real world helps clarify whether you need API 6D, API 607, or both. Here’s a breakdown of typical application environments.
Where API 6D Is Used
API 6D is the go-to standard for valves used in pipeline transportation systems. These are often long-distance, high-pressure systems that require reliable flow isolation and robust mechanical performance.
Typical API 6D applications include:
- Crude oil and natural gas transmission pipelines
- Onshore and offshore gathering systems
- Compressor stations and pump stations
- Petrochemical plant trunk lines
In these cases, the emphasis is on tight shutoff, low maintenance, and consistent performance over years of service—not necessarily on emergency fire survivability.
Where API 607 Is Used
API 607 is mandatory in any setting where fire risk exists and where a valve must isolate dangerous media in case of an accident. This is common in high-hazard environments where flammable fluids, high temperatures, or ignition sources are present.
Typical API 607 applications include:
- Refinery units (e.g., FCC, hydrocrackers)
- Offshore platforms and FPSOs
- LNG terminals and tank farms
- Chemical processing systems
- Hazardous waste incineration lines
Many of these applications also require API 6D, meaning dual-certified valves are often used.
Dual-Certification Projects
In EPC tenders and large industrial projects, it’s increasingly common to see both standards listed as mandatory. Project owners want to ensure valves meet operational as well as emergency safety conditions.
Related Standards Compared
While API 6D and API 607 are the most discussed in ball valve selection, they aren’t the only standards that may come up in technical specifications. Engineers and procurement teams often encounter related API standards like 6FA, 608, and 598. Understanding how they differ helps avoid unnecessary confusion or over-specification.
API 6FA vs API 607
These two are often compared because they both cover fire testing, but they apply to different valve types and have distinct methodologies.
| Feature | API 607 | API 6FA |
|---|---|---|
| Valve Type | Quarter-turn valves with soft seats | Various valves (including gate, globe) |
| Fire Test Focus | External flame exposure + leak testing | Fire resistance + operation integrity |
| Typical Application | Ball valves, butterfly valves | Broad industrial use |
| Common Use In | Refineries, offshore rigs | Power plants, oil & gas installations |
In some specifications, either API 607 or API 6FA may be accepted, depending on valve type and design.
API 608 vs API 6D
- API 608 is a general standard for industrial ball valves, often used in chemical and process plants.
- API 6D applies to pipeline valves, with stricter structural and documentation requirements.
If you’re dealing with high-pressure transport lines or regulated pipelines, API 6D is preferred.
API 598: Testing Procedures
- API 598 is a general-purpose valve testing standard.
- It outlines basic hydrostatic and leakage tests for most valve types.
- While useful, it does not cover fire testing and is often used in conjunction with other standards like 6D or 607.
Summary Table
| Standard | Focus | Applies To | Fire Test? |
|---|---|---|---|
| API 6D | Pipeline valve design & testing | Ball, gate, plug, check valves | No |
| API 607 | Fire-safe testing | Soft-seated quarter-turn valves | Yes |
| API 6FA | Fire test for general valves | Broad valve types | Yes |
| API 608 | Industrial ball valve design | Flanged ball valves | No |
| API 598 | Basic hydro/leakage testing | All valve types | No |
By understanding where each standard fits, you can confidently interpret tender specs, ensure compliance, and avoid over- or under-specifying your valves.
FAQs – API 607 vs API 6D
To clear up remaining confusion, here are some of the most frequently asked questions engineers and procurement teams have about these two standards. These answers are based on real queries from Google, Reddit, Quora, and valve specification forums.
Can a valve be certified to both API 6D and API 607?
Yes. Many high-performance ball valves—especially those used in hazardous environments—are designed and tested to comply with both standards. API 6D ensures pipeline performance compliance, while API 607 adds fire-safe certification. Dual certification is common in offshore, refinery, and LNG applications.
Do all ball valves require API 607?
No. Only valves used in systems where fire safety is a concern (e.g., handling flammable media, high-temperature zones) require API 607 certification. For clean water, air, or buried pipelines with no fire risk, API 6D alone may suffice.
What’s the difference between API 607 and API 6FA?
Both are fire-test standards, but:
- API 607 applies specifically to soft-seated quarter-turn valves like ball or butterfly valves.
- API 6FA is broader and can apply to other valve types (e.g., gate or globe).
The test procedures and acceptance criteria are also different.
How does API 607 fire testing work?
API 607 subjects the valve to direct flame exposure at high temperature (750–1000°C) for 30 minutes, simulating a real fire. Afterward, the valve is cooled and retested for leakage. It must maintain structural integrity and tight shutoff under post-fire conditions.
Do I need fire-safe certification if my system already uses API 6D valves?
Only if the system carries flammable fluids or is installed in a fire-prone area. In such cases, API 6D alone is not enough—you will need a valve that also meets API 607 (or 6FA) requirements.
Conclusion: Which Valve Standard Is Right for You?
Understanding the difference between API 607 and API 6D is critical if you’re responsible for selecting, specifying, or approving ball valves for industrial systems. These two standards serve different purposes, and assuming they’re interchangeable can lead to serious safety or compliance issues.
Final Takeaways
- Use API 6D when your focus is pipeline integrity, design validation, and operational reliability.
- Use API 607 when fire safety is a concern—especially in systems that handle flammable or toxic media.
- Use both when operating in high-risk environments like refineries, offshore rigs, or chemical plants.
When in doubt, review your project specifications, consult with your supplier, and ask for test reports. The right valve certification doesn’t just ensure performance—it protects people, assets, and compliance.
