When should you consider metal seated butterfly valves?
Consider a metal seated butterfly valve when service conditions may push beyond the limits of a soft or resilient seat. For example, higher temperature, abrasive media, frequent operation, or durability concerns may lead buyers to review a metal seated design. Still, confirm the valve design, pressure and temperature rating, media, leakage requirement, materials, connection type, actuation, and documents before selection.
What Is a Metal Seated Butterfly Valve?
A metal seated butterfly valve uses a metal seating surface instead of relying only on a soft elastomer or resilient seat. Like other butterfly valves, it uses a rotating disc to control flow through the pipeline.
The seat design affects how the valve handles operating conditions. Therefore, many industrial buyers compare metal seated valves with soft seated or resilient seated butterfly valves before they shortlist a product.
However, the phrase “metal seated” alone does not prove that a valve fits an application. Review the actual valve design, materials, ratings, and test documents before you approve the selection.

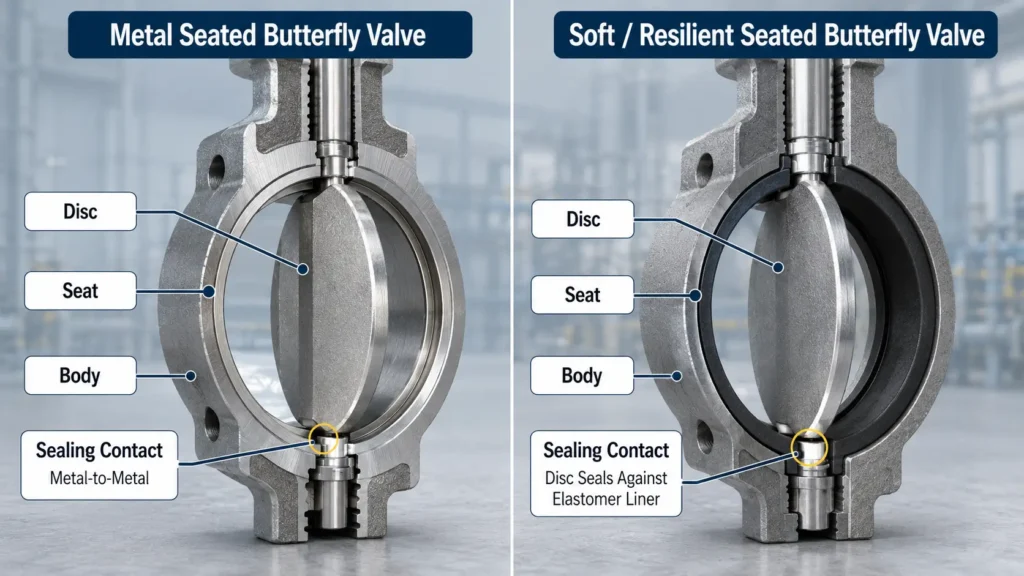

Metal Seated vs Soft or Resilient Seated Butterfly Valves
The main difference is the seat contact material and the sealing concept. A soft or resilient seated butterfly valve typically uses a non-metal seat material. In contrast, a metal seated butterfly valve uses a metal seating surface or metal-to-metal sealing concept.
Neither type is automatically better in every situation. In practice, the right choice depends on the system.
| Selection Point | Metal Seated Butterfly Valve | Soft / Resilient Seated Butterfly Valve | What to Verify |
|---|---|---|---|
| Typical selection reason | Buyers often review it for more demanding service conditions | Buyers often use it for general service where the seat material fits the media and temperature | Actual service temperature, pressure, media, and valve rating |
| Seat behavior | Uses metal seating surfaces or a metal-seat design | Uses soft or resilient seat material | Seat material compatibility and shutoff requirement |
| Temperature concern | Can help when soft seat limits become a concern, if the design and rating support it | Seat material may limit the temperature range | Datasheet rating and material limits |
| Media condition | Can help where media may challenge soft seats, if materials and design match the service | Can work well where media and conditions match the seat material | Media composition, particles, abrasion, corrosion risk |
| Shutoff expectation | Requires a check against valve documents | Also requires a check against valve documents | Leakage class or shutoff standard |
| Procurement risk | Requires careful review of documents and ratings | Requires confirmation too, especially for media compatibility | Drawings, datasheet, inspection documents, applicable standards |
The practical takeaway is simple: use the seat type as a starting point, not the final decision. A metal seated valve may solve one problem. However, it may also add cost, sealing, torque, or document requirements. Therefore, compare the full specification before approving a valve type.

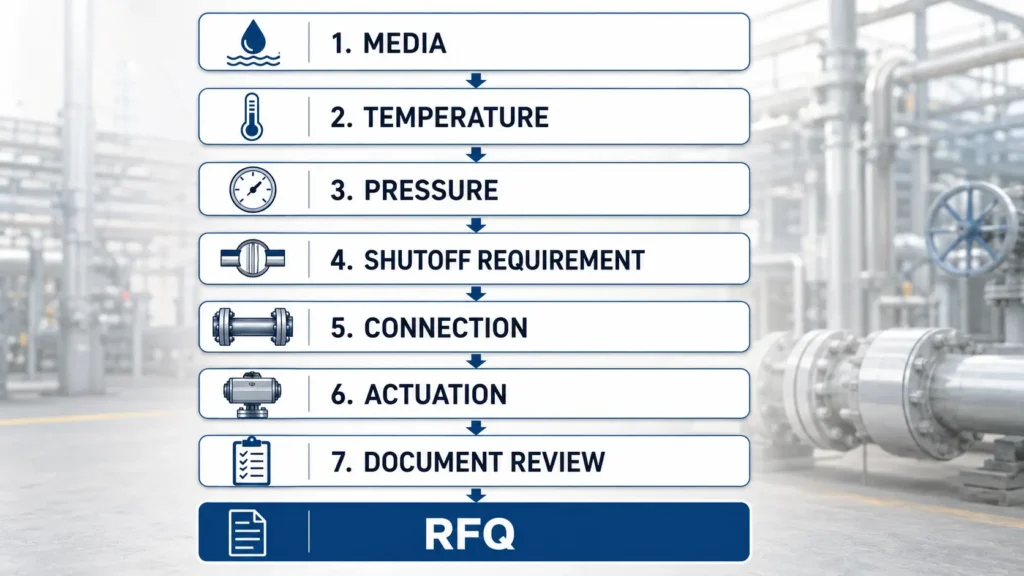

Service Conditions That Affect Selection
Review a metal seated butterfly valve against the actual operating conditions. If these details remain unclear, the supplier may not be able to confirm whether the valve fits the service.
| Condition to Confirm | Why It Matters | What to Provide Before RFQ |
|---|---|---|
| Media | Media affects material selection, seat behavior, and corrosion or abrasion risk | Fluid or gas name, concentration if relevant, solids or particles if present |
| Temperature | Seat and body materials must match operating conditions | Normal, minimum, and maximum temperature |
| Pressure | Pressure affects body rating, seat design, and shutoff expectations | Normal pressure, maximum pressure, pressure fluctuations |
| Flow duty | Control, isolation, throttling, or frequent operation can affect selection | Operating mode and cycling frequency |
| Shutoff requirement | The project team must define leakage limits instead of assuming them | Required leakage class or test standard, if available |
| Size and connection | Valve dimensions and installation interface must match the pipeline | DN/NPS, flange standard, wafer/lug/flanged type if known |
| Actuation | Manual, pneumatic, electric, or hydraulic operation affects torque and integration | Actuator type, control signal, fail position if needed |
| Documents | Industrial projects often require drawings, certificates, or inspection records | Required datasheet, drawing, material document, test report, or certificate request |
Media, Temperature, Pressure, and Duty Cycle
These four inputs usually shape the first selection discussion.
Media affects material and seat compatibility. Temperature affects whether the seat and body materials can stay stable in operation. Pressure affects rating and shutoff review. Also, duty cycle affects wear, torque, and actuation decisions.
Do not select a metal seated butterfly valve only because the application sounds “severe.” Instead, define the service data and ask the supplier to review whether the selected valve design fits the application.
Shutoff and Leakage Expectations
Do not assume that a metal seated butterfly valve automatically provides zero leakage.
Leakage performance depends on valve design, seat construction, test method, pressure, temperature, and applicable standard. If shutoff performance matters, ask the supplier to confirm the leakage class or shutoff standard in writing.
What leakage or shutoff class can this valve meet under my stated service conditions, and what document confirms it?
As a result, you avoid a common mistake: treating general product language as a verified performance guarantee.
Application Fit: Where Buyers Often Consider Metal Seated Designs
Buyers often review metal seated butterfly valves for demanding industrial service conditions, especially when heat, media condition, durability, or seat limits affect the decision.
For example, the following service contexts may lead a buyer to review a metal seated design:
| Service Context | Why Buyers May Review Metal Seated Designs | What Still Needs Confirmation |
|---|---|---|
| Higher-temperature service | Soft seat materials may have limits | Actual temperature rating and valve design |
| Abrasive or particle-containing media | Seat wear may become a concern | Media details, material selection, expected wear |
| Demanding industrial duty | Durability and service conditions may drive selection | Duty cycle, torque, actuation, maintenance expectations |
| Applications with document requirements | Projects may require datasheets, drawings, inspection records, or test records | Exact documents available for the order |
| Systems with defined shutoff expectations | Leakage assumptions can create project risk | Leakage class, test method, operating pressure and temperature |
These examples show selection contexts, not automatic approvals. Therefore, base final suitability on the full specification and supplier review.

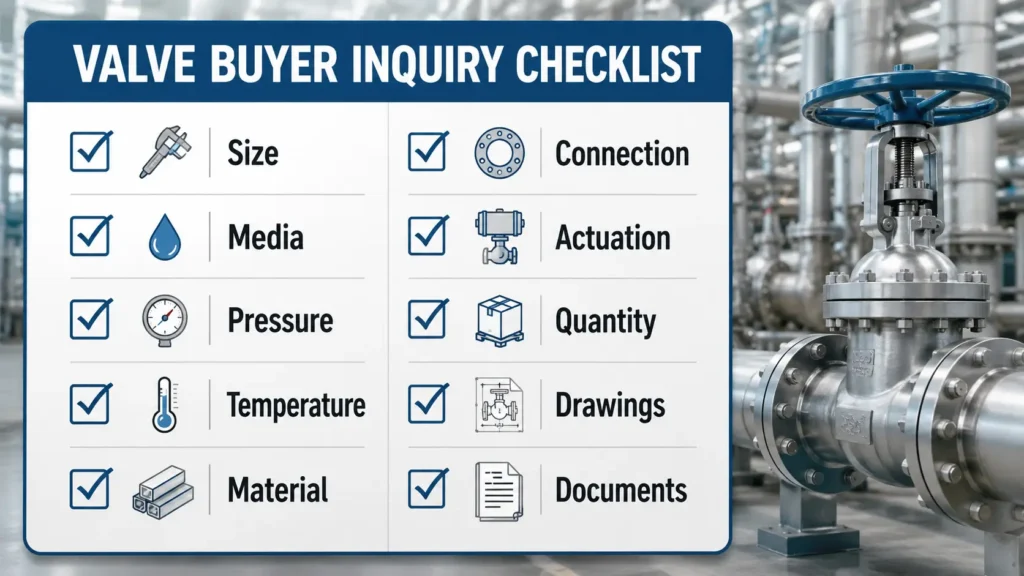

What to Prepare Before Requesting a Quote
A clearer RFQ helps the supplier review the application and reduces back-and-forth. For metal seated butterfly valves, prepare the operating conditions and document needs before you ask for price.
Use this checklist before sending an inquiry:
| RFQ Item | Details to Provide |
|---|---|
| Valve size | DN/NPS, pipe size, or drawing reference |
| Media | Fluid/gas name, concentration, solids, abrasiveness, corrosiveness |
| Pressure | Working pressure, maximum pressure, pressure fluctuation |
| Temperature | Normal, minimum, and maximum operating temperature |
| Valve function | Isolation, control, throttling, on/off, emergency use |
| Connection type | Wafer, lug, flanged, welded, or project standard if known |
| Body/disc/seat material preference | Existing specification or required material, if already defined |
| Actuation | Manual lever/gear, pneumatic, electric, hydraulic, control signal |
| Quantity | Prototype, project quantity, replacement quantity, or annual demand |
| Documents required | Datasheet, drawing, material certificate, pressure test, inspection report, applicable standard |
| Project notes | Installation limits, space constraints, pipeline orientation, special requirements |
If you do not know every detail, provide the available information and mark the unknowns. For technical applications, this approach works better than forcing an incomplete specification.
How to Compare Suppliers Without Relying Only on Price
Unit price matters. However, it should not be the only comparison point for metal seated butterfly valves. A low price may not help if the valve design, documents, materials, or shutoff expectations remain unclear.
When comparing suppliers, ask practical questions:
| Supplier Check | Why It Matters |
|---|---|
| Can the supplier review your service conditions before quoting? | This helps you avoid selecting by product name only |
| Can they provide a datasheet or drawing? | This confirms dimensions, materials, and basic specification |
| Can they explain the seat design and suitable service boundary? | This reduces confusion between metal seated, resilient seated, and high-performance designs |
| Can they state what documents are available? | This supports project procurement and quality review |
| Can they clarify leakage/shutoff expectations? | This prevents assumptions about sealing performance |
| Can they support actuation requirements? | Actuator selection affects torque, control, and installation |
| Do they ask enough technical questions? | Good review usually requires service data, not only size and quantity |
A useful supplier does more than quote quickly. Instead, it helps confirm whether the valve type, design, and documents match the application.
For a related XHVAL product route, review the metal seal butterfly valve page. For broader butterfly valve categories, review the butterfly valve page. Then, confirm the final specification and documents before purchase.
Proof-Needed Claims to Verify Before Purchase
Some claims sound attractive. However, buyers should ask for proof before they rely on them.
| Claim Type | Why It Needs Proof | What to Ask For |
|---|---|---|
| “Zero leakage” | Leakage depends on design, test method, and service conditions | Leakage class, test standard, test report if required |
| “High temperature” | Temperature rating depends on materials and design | Datasheet rating and material details |
| “High pressure” | Pressure rating depends on body, seat, connection, and standard | Pressure class/rating and drawing |
| “Certified” | Certification must be specific and valid | Certificate name, scope, issuing body, validity |
| “Meets international standards” | Standards must be named and relevant to the order | Exact standard and compliance document |
| “Suitable for abrasive media” | Media severity varies widely | Media data and material review |
| “Fast delivery” | Delivery depends on specification, quantity, and production schedule | Written lead-time confirmation for the exact order |
This proof-first approach protects both engineering and procurement teams. Moreover, it gives the supplier a clear basis for technical review.
FAQ
What is the difference between metal seated and soft seated butterfly valves?
The main difference is the seat material and sealing concept. A soft or resilient seated butterfly valve uses a non-metal seat material. In contrast, a metal seated butterfly valve uses a metal seating surface or metal-seat design. The right choice depends on media, temperature, pressure, shutoff requirement, and valve documents.
When should I choose a metal seated butterfly valve?
Shortlist a metal seated butterfly valve when service conditions may challenge soft or resilient seats, such as demanding temperature, media, duty, or durability requirements. However, base final selection on verified valve design, ratings, materials, leakage requirement, and supplier review.
Are metal seated butterfly valves better for high-temperature service?
Buyers often review them when temperature conditions may exceed the limits of some soft seat materials. However, metal seated design does not automatically prove suitability. Always confirm the valve’s temperature rating, materials, seat design, and relevant documents.
Do metal seated butterfly valves provide zero leakage?
Do not assume zero leakage. Ask the supplier to verify leakage or shutoff performance with valve documents, test method, and applicable standard. If shutoff is critical, request the leakage class or test report for the stated service conditions.
What information should I provide when requesting a quote?
Provide valve size, media, pressure, temperature, valve function, connection type, material preference, actuation method, quantity, drawings if available, and required documents. As a result, the supplier can review whether the valve design fits the application.
What applications use metal seated butterfly valves?
Buyers often review them for industrial service conditions where temperature, media condition, duty, or seat durability may matter. However, actual suitability depends on the full specification, valve design, material selection, and documents.
What documents should I ask a supplier for?
Depending on the project, ask whether the supplier can provide datasheets, drawings, material documents, pressure test records, inspection reports, leakage or shutoff information, or relevant certificates. Also, do not assume a document exists unless the supplier confirms it for the specific order.
Share Your Service Conditions for Review
Before selecting a metal seated butterfly valve, prepare your media, temperature, pressure, size, connection type, actuation needs, quantity, and required documents.
Then, send these details to the supplier so the team can review the valve design, seat type, materials, shutoff expectation, and documents against your service conditions.
A clear RFQ helps avoid the wrong valve type, missing documents, and unsupported performance assumptions.
