2 pc cast steel floating ball valve
2 pc cast steel floating ball valve
Whether your process requires API 6D valves, API 608 valves, adjustable stem packing, O-ring stem seals, API 607 fire-safe rating. Find more various ball valves in XHVAL.
Introduction of 2 pc cast steel floating ball valve
Specifications
| Valve Size | 1“–10” |
|---|---|
| Pressure Class | 150LB–600LB |
| Materials | WCB, A105, LF2, F316, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
| Design and Manufacturing Standards | API 6D, API 608, ASME B16.34, ISO 17292, BS5351, |
| Face to Face Standards | ASME B16.10, BS 558, BS12982, ISO 5752 |
| Flange Dimension Standards | ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627 |
| Pressure Test Standards | API598 API 6D BS12569 |
| Fire Safety Test Standards | API 6FA, API 607 |
| Quality/Product Certifications | ISO9001, ISO14001, ISO18001 |
| Fugitive Emissions | ISO 15848-1, API 622 |
| NACE | NACE MR 0175 |
| Valve operator options | Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
| Shutoff Class | API 598 (Zero Leakage), API 6D |
| Bore | Full Bore, Reduced Bore |
| Process Connection Types | SW, NPT, BW, RF, RTJ |

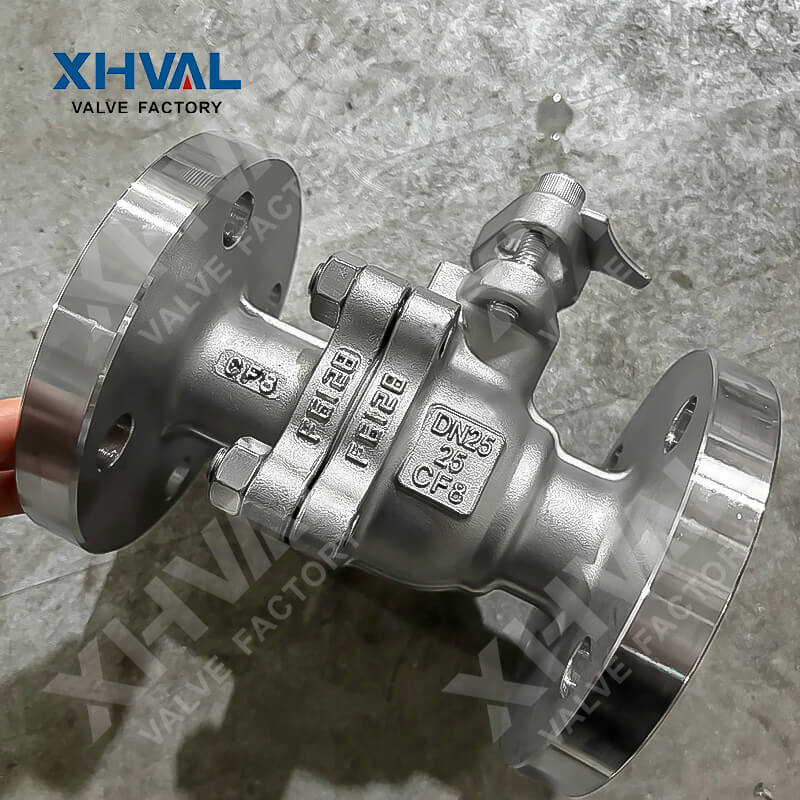

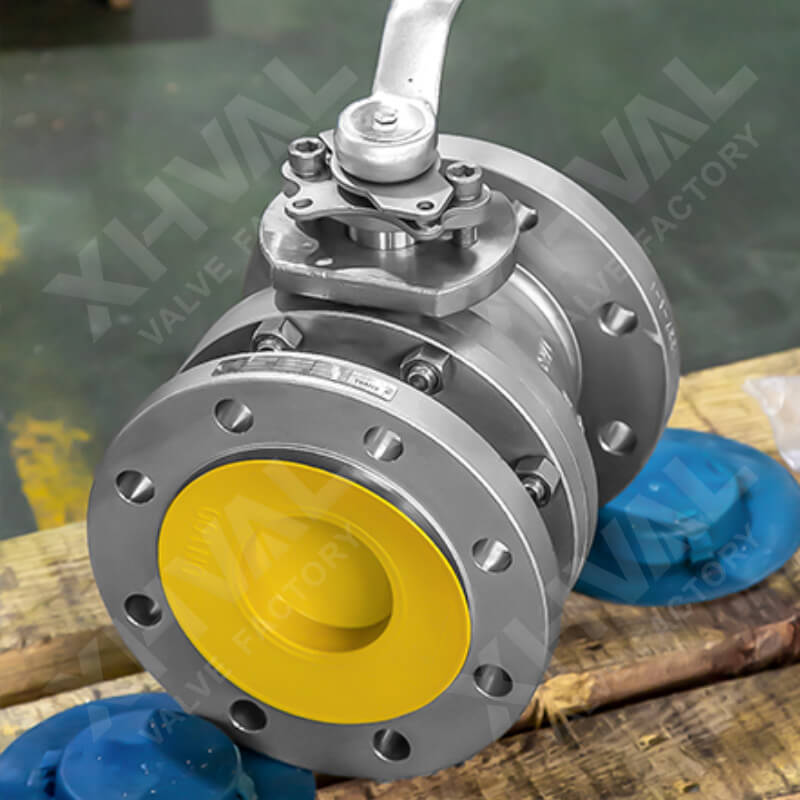

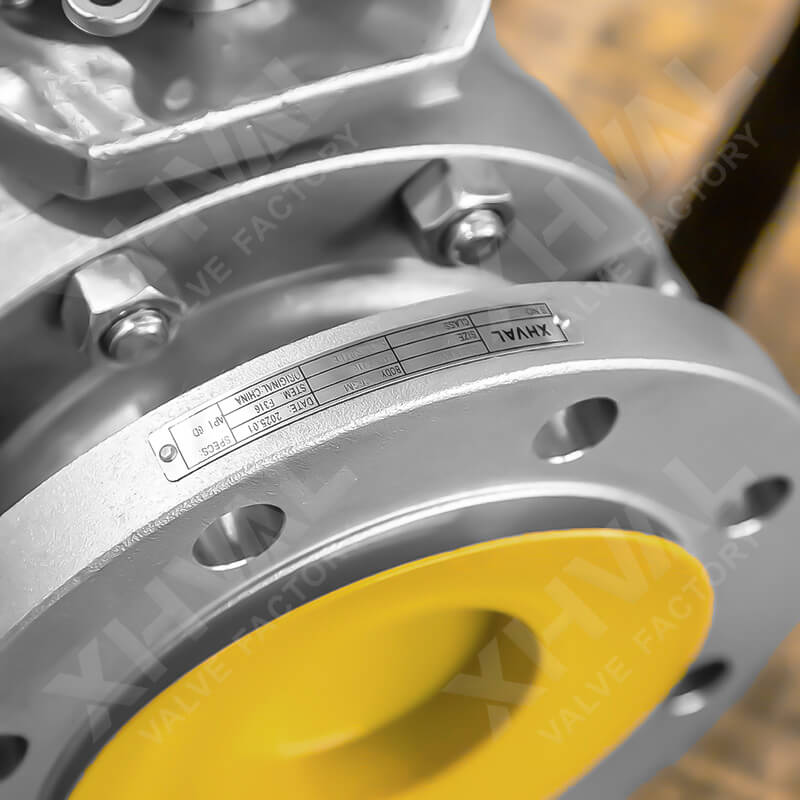

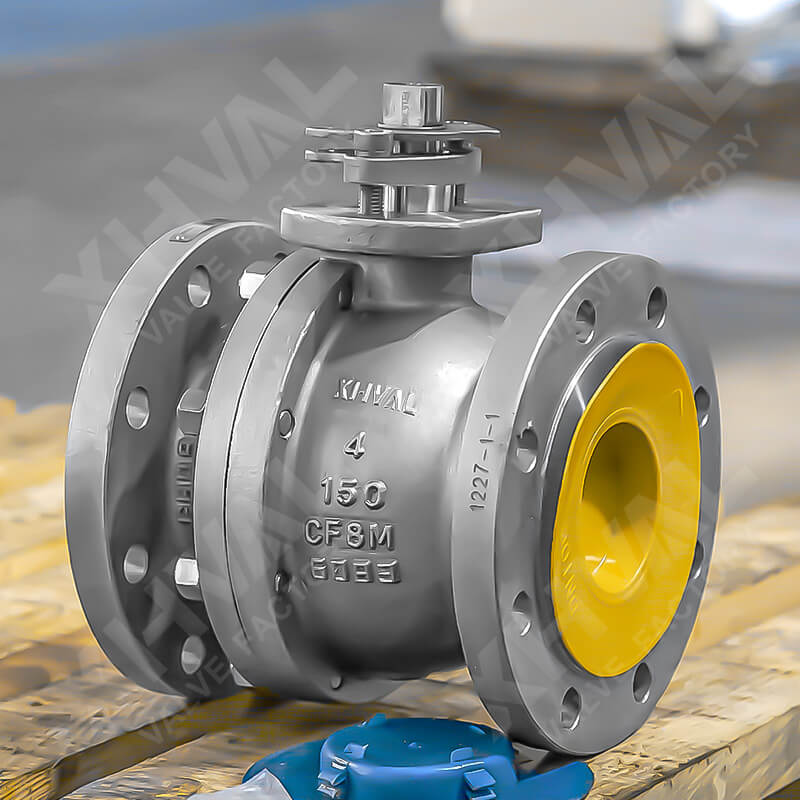

Product Details
