Full Port Gate Valve
Full Port Gate Valve
Also called a full bore gate valve, a full port gate valve contains an opening that shares a uniform diameter with the pipelines it connects to. Can find more gate valves in XHVAL.
Introduction of Full Port Gate Valve
Also called a full bore gate valve, a full port gate valve contains an opening that shares a uniform diameter with the pipelines it connects to. It offers a full and unobstructed flow, making it best for applications that need a tight shut-off and free flow.
A full bore gate valve is commonly found in operations that need low-flow resistance. It is also suitable for media that is made of mixed solids and liquids. This is because certain flow conditions may isolate components, causing them to clog or build-up.
Notable benefits of a this valve include consistent flow rate, minimum pressure drop, and low friction loss. These benefits greatly help in extending the service life of the gate valve.
Specifications
Valve Size | 2″~48″ , DN50–DN2000 |
---|---|
Pressure Class | 150LB~900LB, PN10–PN150 |
Materials | WCB, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
Design and Manufacturing Standards | API 600, API 6D, DIN 3352, EN1984 |
Face to Face Standards | ASME B16.10, DIN3202, EN 558-1 |
Flange Dimension Standards | ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545; |
Pressure Test Standards | API598, API6D, DIN 3230 , EN 12569 |
Fire Safety Test Standards | API607 |
Quality/Product Certifications | ISO9001, ISO14001, ISO18001 |
Fugitive Emissions | ISO 15848-1, API 622 |
NACE | NACE MR 0103 NACE MR 0175 |
Valve operator options | Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator |
Shutoff Class | API 598 (Zero Leakage), API 6D |
Bore | FULL BORE |
Process Connection Types | RF, RTJ, BW |

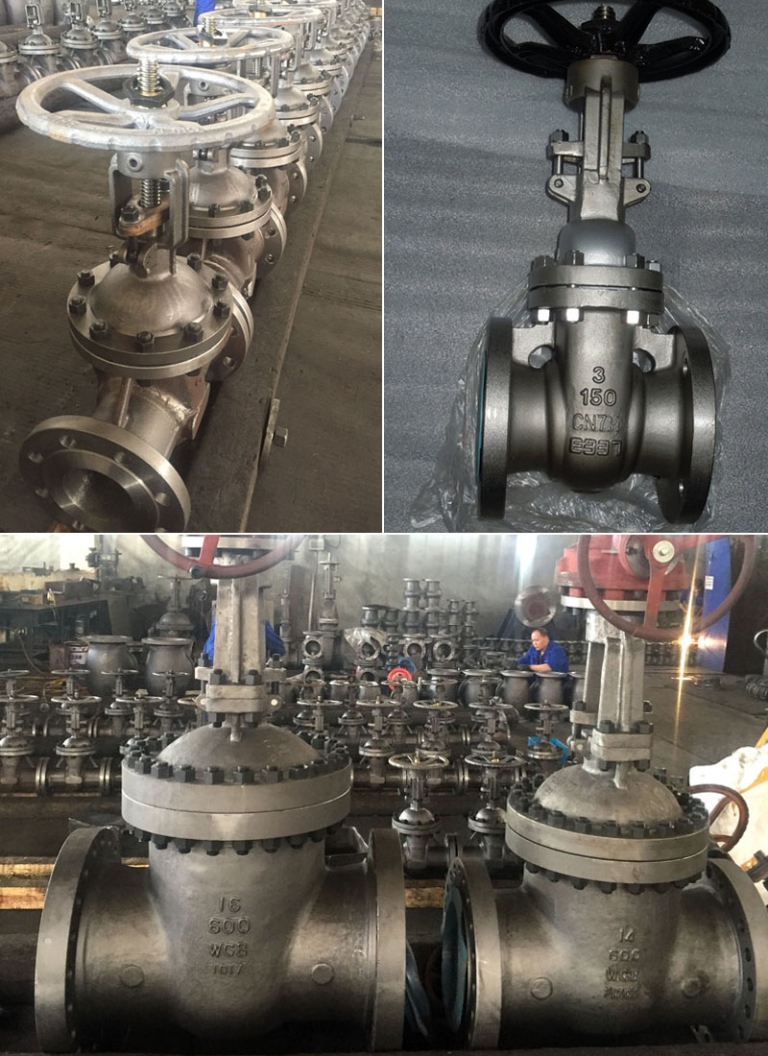

Product Details
