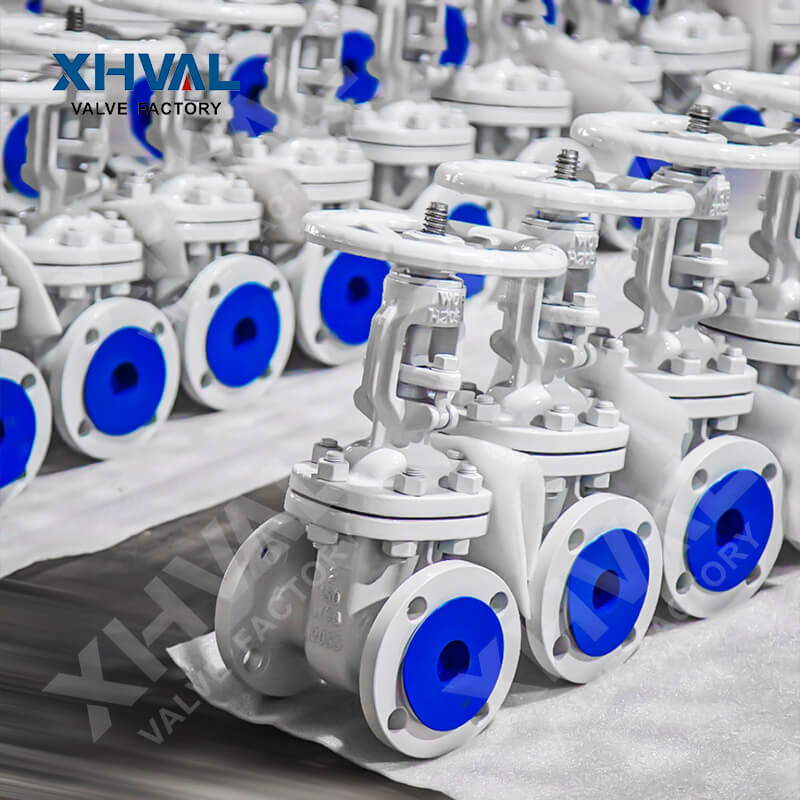

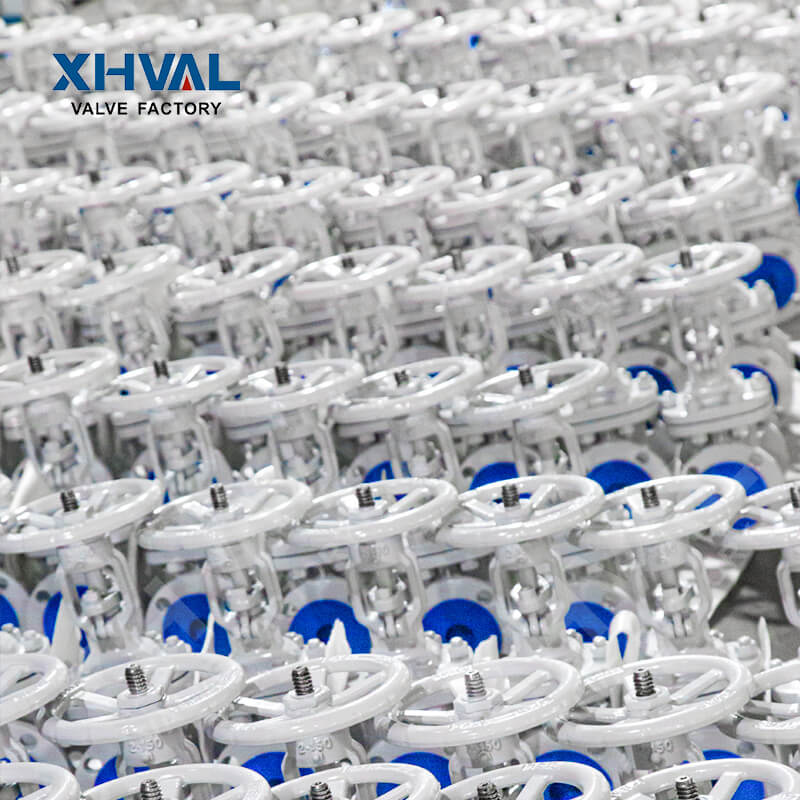

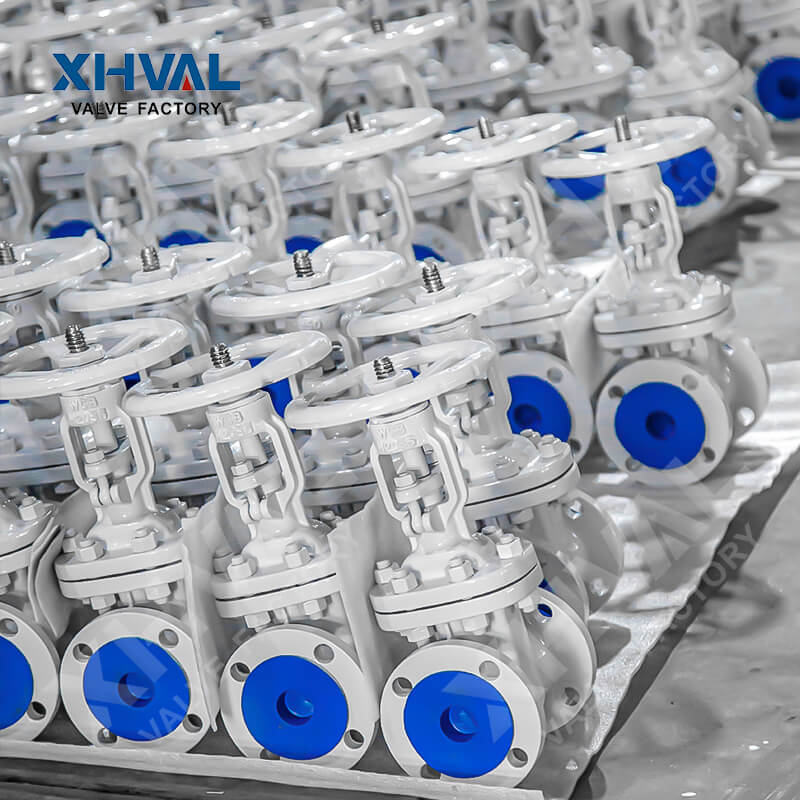

Cast Steel Low Pressure Gate Valve
A range of ASME Class 150, 300 and 600 bolted bonnet cast steel valves, with metal-to-metal seating in flanged or butt weld ends
Introduction of Cast Steel Low Pressure Gate Valve
A range of ASME Class 150, 300 and 600 bolted bonnet cast steel valves, with metal-to-metal seating in flanged or butt weld ends.
The range of quality gate, globe and check valves are installed in a wide range of applications in the oil and gas, chemical and petrochemical, onshore and offshore drilling/refining, and the power industries. Can find more well-performanced gate valves here in XHVAL.
Specifications
| Valve Size | 2″~ 48″ , DN50–DN2000 |
|---|---|
| Pressure Class | 150LB~900LB, PN10–PN150 |
| Materials | WCB, WC6, WC9, WCC, CF8, CF3, CF3M, CF8M, 4A, 5A |
| Design and Manufacturing Standards | API 600, API 6D, DIN 3352, EN1984 |
| Face to Face Standards | ASME B16.10, DIN3202, EN 558-1 |
| Flange Dimension Standards | ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545; |
| Pressure Test Standards | API598, API6D, DIN 3230, EN 12569 |
| Fire Safety Test Standards | API607 |
| Quality/Product Certifications | ISO9001, ISO14001, ISO18001 |
| Fugitive Emissions | ISO 15848-1, API 622 |
| NACE | NACE MR 0103 NACE MR 0175 |
| Valve operator options | Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator. |
| Shutoff Class | API 598 (Zero Leakage), API 6D |
| Bore | FULL BORE |
| Process Connection Types | RF, RTJ, BW |
Product Details
