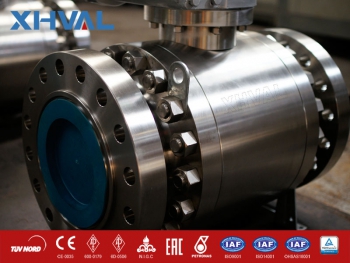

hard seal trunnion ball valve

Previous slide
Next slide

Metal seated trunnion ball valve

  • multiple stem sealing
  • double block and bleed
  • extra wall thickness
  • bi-directional class vi shutoff
  • low operating torques
  • low pressure sealing safety design

Metal Seated Trunnion Ball Valve: Product Overview

Metal Seated Trunnion Ball Valve Specifications

Metal Seated Trunnion Ball Valve Standards

Valve Size

2 “–60”, DN50–DN1200

Pressure Class

150LB–2500LB, PN16–DN420, JIS10-20K

Materials

A105, LF2, F316, F11, F304, F316, F51 , F55;

Design and Manufacturing Standards

API 6D, API 608, ASME B16.34, ISO 17292, BS5351;

Face to Face Standards

ASME B16.10, BS 558, BS12982, ISO 5752;

Flange Dimension Standards

ASME B 16.5, ASME B16.47, ASME B16.25, ASME B16.11, BS 12627;

Pressure Test Standards

API598, API 6D, BS12569;

Fire Safety Test Standards

API 6FA API 607

Quality/Product Certifications

ISO9001, ISO14001, ISO18001;

Fugitive Emissions

ISO 15848-1, API 622;

NACE

NACE MR 0175

Valve operator options

Handwhel, Worm Gear, Electric actuator, Pneumatic actuator, Hydraulic Actuator;

Shutoff Class

API 598 (Zero Leakage), API 6D;

Bore

Full Bore, Reduced Bore

Process Connection Types

SW, NPT, BW , RF, RTJ;

Metal Seated Trunnion Ball Valve: What is It

  • Designed to provide peak performance in elevated temperature applications, the Metal Seated Trunnion Ball Valve features hard faced a ball and seat to minimize wear and extend valve life.
  • The hard face coating is applied using a High Velocity Oxygen Fuel (HVOF) process and can be either tungsten carbide or chrome carbide.
  • Its adjustable gland packing box with multiple stem sealing helps our customers meet the stringent ISO 15848 fugitive emissions test requirements.
