Top Entry Trunnion Ball Valve

Previous slide
Next slide

Top Entry ball valve

  • multiple stem sealing sealant injection
  • double block and bleed
  • extra wall thickness
  • bi-directional class vi shutoff
  • low operating torques
  • low-pressure sealing safety design

Top Entry Ball Valve:Product Overview

  • Valve Size

NPS 1/2, NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 18, NPS 20, NPS 24, NPS 30, NPS 36, NPS 40, NPS 42, NPS 44, NPS 48, NPS 52, NPS 56, NPS 60

  • Pressure Class:

150#, 300#, 600#, 900#, 1500#, 2500#

  • Materials

Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, Duplex, Super Duplex, Inconel

  • Design and Manufacturing Standards

API 6D, ASME B 16.34, BS EN ISO 17292

  • Face to Face Standards

ASME B 16.10, API 6D

  • Flange Dimension Standards

ASME B 16.5 (up to 24″), ASME B16.47 Series A (26″ and above)

  • Butt Weld Valve End Standards

ASME B16.25

  • Pressure Test Standards

API 6D, API 598, BS EN 12266 -1 and 2

  • Fire Safety Test Standards

API 607, API 6FA, BS EN ISO 10497

  • Quality/Product Certifications

ISO 9001, API 6D, PED 2014/68/EU, EAC (Russia),ATEX and OSHAS 18001

  • Fugitive Emissions

ISO 15848

  • NACE

MR 01-75 / ISO 15156 compliant

  • Valve operator options

Bare stem, Gear, Hand lever, Pneumatic actuator, Hydraulic actuator, Gas actuator, Gas-over-oil actuator, Motor-operated actuator, Hydraulic/electro actuator, hydraulic-operated actuator

  • Shutoff Class

API 598 (Zero Leakage), Class VI (FCI 70-2), API 6D

Top Entry Ball Valves: Introduction

A top entry ball valve is used to control fluid transmission in pipeline systems where quick shut-offs are required. The ball, stem, and actuator are assembled vertically, in that order, hence the name ‘top entry’. It has a detachable bonnet which provides access to internal parts of the entire valve. This makes it possible for repairs to be performed on the valve while it is still in-line.



Top Entry Ball Valve: Industrial Applications

  • top entry ball valve for stream(Geothermal reinjection units )

After energy extraction, geothermal fluids need to be injected back to the reservoir in measured amounts at a predetermined pressure. A top entry ball valve is applicable in controlling such dispensation.

  • PIG traps

Top entry ball valves provide a safe way to insert or remove pipeline PIGS as they can withstand the high-pressure that goes along with PIG trap procedures. A full bore valve also provides adequate room for PIG traps.

  • Top entry for surge-relief skids

The fast maneuverability of top entry ball valves is useful in operating pipeline surge-relief skids. They can be set to automatically open when the pressure reaches a set level and shut tightly again when the system is relieved.A

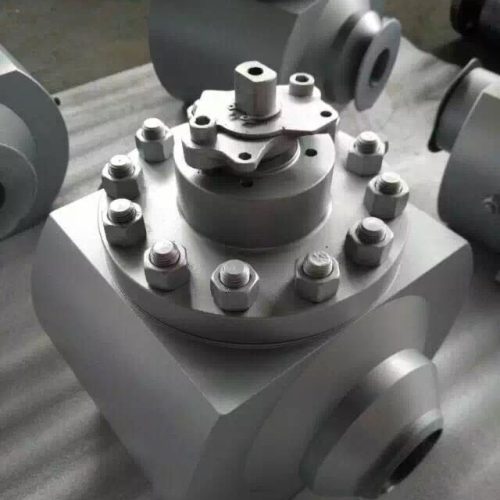

Top Entry Trunnion Ball Valve

Top entry ball valve designs

XHVAL top entry mounted ball valves range in size from NPS ½ to NPS 60 with either full bore or reduced bore valve balls.

Depending on the application, they can be fitted with pneumatic, hydraulic, or gas actuators among many other valve operator options.

Each unit, regardless of size, is built to perform with low torque and smooth gliding movements while maintaining maximum safety.

Trustful Top Entry Ball Valve Manufacturer

Xhval is one of the experienced top entry valve manufacturers committed to offering premium quality to our customers. Our valves have multiple stem sealing, double block and bleed, as well as bi-directional class IV shut-off to ensure maximum flow control. They conform to API 6D pressure standards and ASME B 16.34 design standards thus making them ideal for critical service environments.
