Introduction: Why Compare Sluice and Gate Valves?
If you’ve ever worked on an industrial pipeline or municipal water system, you’ve probably encountered both sluice valves and gate valves. At first glance, they might look quite similar—and in many cases, they’re even used interchangeably.
But here’s the truth: these two valves serve different purposes, operate slightly differently, and are built with distinct applications in mind.
In this guide, I’ll walk you through the real differences between a sluice valve and a gate valve—from structure to standards, from pressure handling to maintenance needs. Whether you’re selecting a valve for a new system or replacing one in the field, this breakdown will help you make the right call.

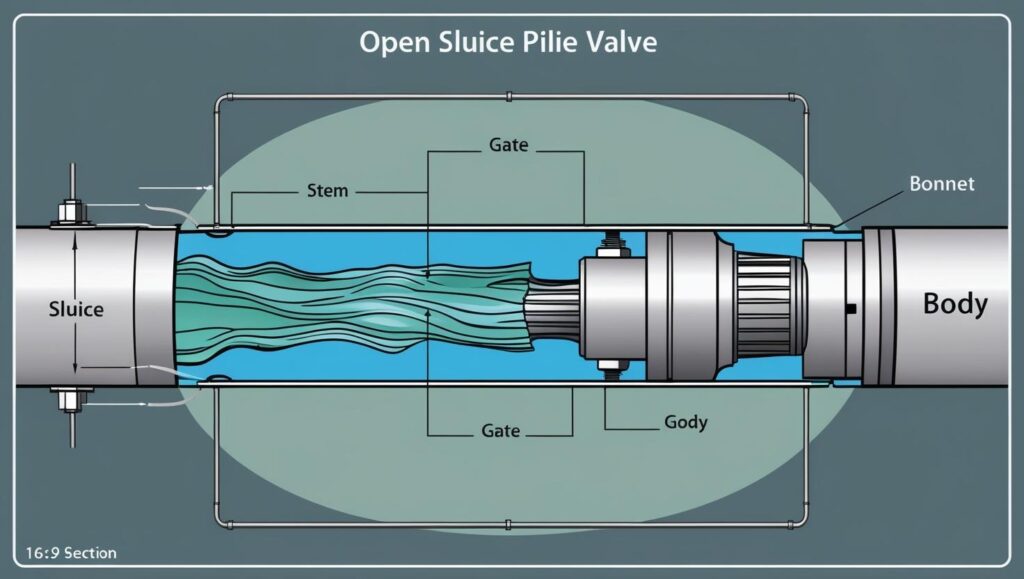

What Is a Sluice Valve?
A sluice valve is a type of linear motion valve used to control the flow of liquids—most commonly water—by raising or lowering a gate or disc through a threaded spindle. It’s widely used in municipal water systems, irrigation networks, and utility pipelines where large volumes of water need to be managed with minimal flow resistance.
Unlike some valves that regulate flow, a sluice valve is designed primarily for on/off control. It’s not intended for throttling, as partially open sluice valves can cause excessive wear or turbulence in the system.
Key Features:
- Structure: Typically consists of a body, a rising or non-rising stem, a wedge-shaped or parallel gate, and a handwheel or actuator.
- Flow Direction: Bi-directional in most cases.
- Opening Mechanism: Gate lifts vertically, creating a full unobstructed path for flow.
Common Use Cases:
- Urban water distribution networks
- Wastewater treatment plants
- Canal and irrigation systems
- Fire water mains
What Is a Gate Valve?
A gate valve is one of the most common shut-off valves used in industrial and commercial pipelines. Like a sluice valve, it uses a sliding gate to control flow. However, gate valves are often built to handle higher pressure and are more frequently used in complex industrial systems such as oil and gas, steam, and chemical applications.
Gate valves are designed to be either fully open or fully closed. They are not suitable for throttling because the partial opening can cause vibration, erosion of the gate and seat, and flow instability.
Key Characteristics:
- The gate moves vertically inside the valve body to start or stop flow.
- Minimal flow resistance when fully open.
- Typically suited for systems where infrequent valve operation is expected.
Common Types of Gate Valves:
- Wedge Gate Valve: Most common; features a solid or flexible wedge that provides tight sealing.
- Parallel Gate Valve: Uses two parallel discs with a spreading mechanism to seal.
- Rising Stem Gate Valve: The stem visibly moves up and down when operating, indicating open or closed position.
- Non-Rising Stem Gate Valve: The stem remains stationary; the gate moves internally.
Typical Applications:
- Oil and gas transmission lines
- High-pressure steam systems
- Power plants and refineries
- Fire protection piping

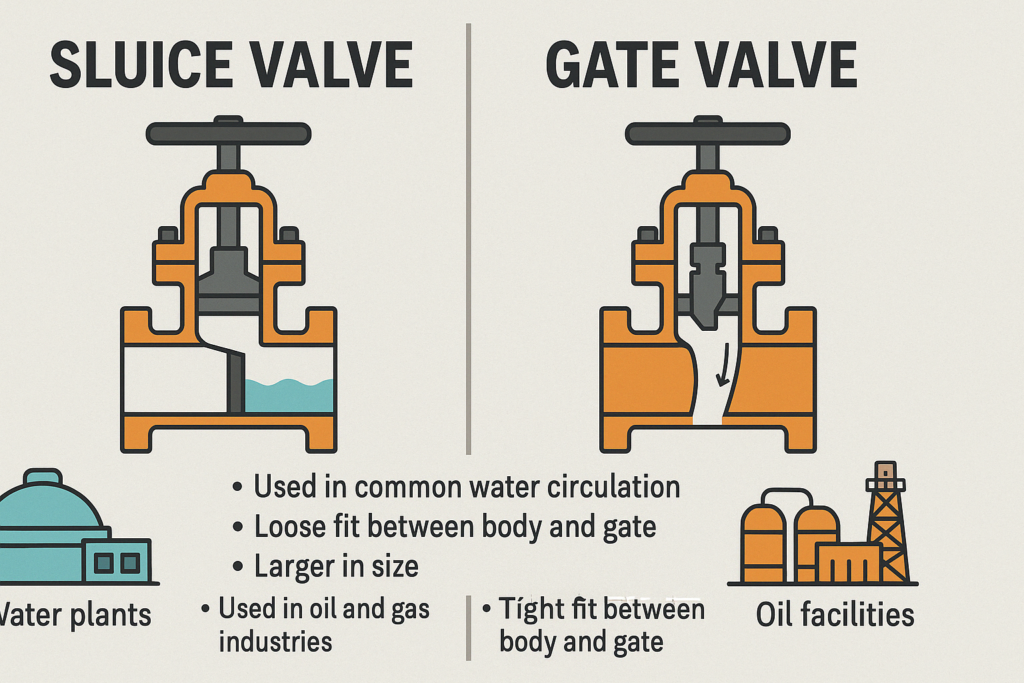

Sluice Valve vs Gate Valve: Key Differences
While sluice valves and gate valves may appear similar and are both used to control the flow of fluids in pipelines, their internal designs and operating characteristics set them apart in meaningful ways.
The most important distinction lies in their application-specific design: sluice valves are typically engineered for large-volume water control systems with relatively low pressure, while gate valves are more versatile, frequently used in high-pressure or corrosive environments like oil and gas systems.
Below is a side-by-side comparison of the key differences:
| Feature | Sluice Valve | Gate Valve |
|---|---|---|
| Primary Use | Water systems, irrigation | Oil, gas, steam, and chemical systems |
| Design Structure | Simple flat gate, large bore size | Various designs: wedge, parallel, etc. |
| Flow Control | Full open/close only | Full open/close only |
| Throttling Capability | Not suitable | Not recommended |
| Pressure Tolerance | Moderate pressure systems | High-pressure systems |
| Stem Types | Often non-rising | Rising and non-rising options |
| Maintenance Complexity | Generally easier | More complex depending on type and size |
| Standard Compliance | Often municipal-level | API, ANSI, and other international standards |
| Cost | Typically lower | Generally higher due to advanced design |
This comparison highlights that while the two valve types are functionally similar in terms of shutting off flow, their differences in construction, use cases, and technical standards mean they are not directly interchangeable in most systems.
Applications: Where Each Type Performs Best
Choosing between a sluice valve and a gate valve often comes down to understanding your specific application requirements. Each valve type is optimized for different system conditions and industry needs.
Sluice Valve Applications:
Sluice valves are typically installed in large-diameter pipelines where high flow volumes and relatively low pressure are involved. They’re especially favored in water systems due to their ability to open and close fully without disrupting flow.
Common Uses Include:
- Municipal water distribution systems
- Irrigation canals and dam outlets
- Wastewater treatment facilities
- Fire protection water lines
Gate Valve Applications:
Gate valves are more versatile and engineered for handling higher pressures and broader fluid types, including corrosive media. Their wide range of designs makes them suitable for more complex and demanding industrial systems.
Common Uses Include:
- Oil and gas pipelines
- Chemical processing plants
- High-pressure steam systems
- Power generation facilities
By matching the valve type to the application environment—whether it’s clean water in a city pipeline or high-temperature steam in a refinery—you can ensure optimal performance and reliability.
Are They Interchangeable? What You Need to Know
One of the most common questions I get is: “Can I use a gate valve in place of a sluice valve, or vice versa?”
The short answer is: not always. While these two valves serve a similar shut-off function, their internal design, pressure ratings, and application contexts can make them non-interchangeable in many cases.
Why They’re Sometimes Confused
Both valves look alike on the outside and use a vertical gate or disc to control flow. In fact, in some regions, especially in water systems, the term “sluice valve” is used interchangeably with “gate valve.” But technically, their design specs differ—especially when it comes to stem type, disc configuration, and material standards.
Key Reasons They May Not Be Interchangeable
- Pressure Class: Gate valves are typically designed for higher pressure applications and follow stricter industrial standards like API 600 or ANSI Class 300. Sluice valves often fall under municipal-grade specifications.
- Flow Media: Gate valves handle a broader range of media—including gas, oil, steam, and chemicals. Sluice valves are generally intended for clean or sediment-laden water.
- Installation Environment: Gate valves come in rising or non-rising stem types, which affect installation space and indication of valve status. Sluice valves are usually non-rising and require less vertical clearance.
When Substitution Might Work
In non-critical, low-pressure water systems (such as secondary irrigation lines), a gate valve might substitute for a sluice valve. However, in industrial or hazardous environments, proper valve specification is non-negotiable.
Final Advice: Always consult valve pressure ratings, standard compliance, and material compatibility before substituting one for the other. Misapplication can lead to premature wear, leakage, or even system failure.
How to Choose the Right Valve for Your System
Choosing the right valve isn’t just about picking between a sluice valve or a gate valve—it’s about matching valve characteristics to your system’s specific needs. As someone who has helped clients across waterworks, oil & gas, and power sectors, I’ve learned that getting this right makes a huge difference in long-term system reliability.
Step-by-Step Selection Criteria
Here’s a practical checklist to help you decide:
1. What type of fluid are you controlling?
- Water or slurry? A sluice valve may be sufficient.
- Oil, gas, or steam? You’ll want a gate valve with suitable material ratings
2. What pressure class is required?
- Sluice valves typically handle low to medium pressures.
- Gate valves cover higher pressure ratings and offer more certified options.
3. Is there enough space for the valve?
- Need a compact solution? Non-rising stem types are preferred.
- Want a visible stem position? Use a rising stem gate valve.
4. Will the valve be operated frequently?
- For frequent cycling, consider the wear and maintenance factors.
- Infrequent operation favors simpler construction (sluice valve).
5. Are you following a specific standard?
- Industrial systems may require API 600, ANSI, or DIN-compliant valves.
Expert Tip
Whenever you’re unsure, always review the system’s pressure-temperature diagram and consult your supplier for spec sheets. The cost of the wrong valve isn’t just money—it’s downtime.
Not sure which one fits your application?
Explore our XHVAL Gate Valves or Contact Our Engineering Team for expert advice.
Standards, Maintenance & Service Considerations
Valve selection doesn’t end with choosing between sluice and gate designs. You also need to think about industry standards, long-term maintenance, and total lifecycle cost. These factors are especially important in regulated or high-risk environments, where valve failure is not an option.
Industry Standards That Matter
- Gate Valves
Gate valves are widely standardized in industrial applications. Look for compliance with:- API 600 / API 602: For steel gate valves in refinery, petrochemical, and high-pressure pipelines.
- ANSI Class 150–600: Pressure-temperature ratings.
- ISO 5208 / MSS-SP-70: Leakage and dimensional standards.
- Sluice Valves
Sluice valves are often governed by local waterworks standards. Common ones include:- BS 5163: For use in potable water systems.
- IS 14846 (India), or equivalent municipal codes.
- Typically less stringent than API-rated valves.
Maintenance Comparison
| Feature | Sluice Valve | Gate Valve |
|---|---|---|
| Inspection Frequency | Low to medium (if in clean water) | Medium to high (especially under pressure) |
| Common Wear Parts | Stem threads, gate seat | Gate wedge, stem packing, seat rings |
| Spare Parts Availability | Often limited to basic parts | Broad range, often standardized |
| Field Servicing | Easier in municipal systems | May require system shutdown |
If you’re working in a municipal water plant, a sluice valve might go untouched for years. But in an oil refinery, your gate valve could see thousands of cycles a year and must be inspected accordingly.
FAQs: Sluice Valve vs Gate Valve Questions Answered
Below are some of the most common questions I’ve come across from engineers, facility managers, and curious professionals on Reddit, Quora, and industry forums.
What is the difference between a sluice valve and a gate valve?
While often used interchangeably in casual conversation, sluice valves are generally intended for municipal water systems and operate with simpler mechanisms. Gate valves, on the other hand, are more versatile, designed for industrial use, and often conform to international standards like API or ANSI. Their pressure tolerance and material specifications differ significantly.
Can a gate valve be used as a sluice valve?
In non-critical water applications, a gate valve can sometimes replace a sluice valve. However, gate valves tend to be more expensive and over-specified for such cases. It’s not advisable to swap them without reviewing system pressure, fluid type, and required certifications.
What are the typical applications of sluice valves?
Sluice valves are primarily used in:
- Water treatment plants
- Distribution networks for potable water
- Irrigation systems
- Sewer and stormwater drainage lines
They’re ideal where full open or full shut-off is needed and where the system doesn’t require frequent valve operation.
Are sluice and gate valves interchangeable in high-pressure systems?
Generally not. Gate valves are specifically built to handle high-pressure and high-temperature environments. Sluice valves are more appropriate for low-to-medium pressure systems and don’t meet the same standards as industrial-grade gate valves.
How do I choose between the two?
Start by evaluating:
- System pressure
- Fluid type (water vs gas or oil)
- Operational frequency
- Required standards (e.g., API or municipal codes)
When in doubt, it’s best to consult with your supplier or valve engineer to avoid performance issues or compliance failures.
Conclusion: Which Valve Is Right for You?
At a glance, sluice valves and gate valves may appear similar—but as we’ve seen, the differences matter. From their construction and pressure handling to their typical applications and compliance standards, each valve is designed to serve specific needs.
Quick Recap:
- Use a sluice valve if you’re working with large-volume, low-pressure water systems like municipal pipelines or irrigation networks.
- Choose a gate valve if your application involves higher pressure, more demanding conditions, or industry-standard compliance—especially in oil, gas, chemical, or power systems.
In short: choose based on system demands, not just appearance. Misusing either valve can result in increased maintenance costs or system downtime.
If you’re unsure which valve is best for your pipeline, project, or plant, don’t guess. Let our engineers help you find the right fit.
