Introduction
If you’ve ever examined a ball valve closely, you’ve probably seen markings like “600 CWP” engraved on its body. But what does “CWP” actually mean—and how does it impact your choice of valve for a specific application?
CWP, or Cold Working Pressure, is a critical part of valve selection—especially when safety, compatibility, and durability are on the line. However, many people misunderstand what CWP includes (and what it doesn’t), confusing it with WOG or WSP ratings.
In this article, we’ll walk you through:
- What “CWP” stands for on a ball valve
- What the rating measures—and under what conditions
- Where CWP valves can and can’t be used
- How CWP compares to WOG and WSP
- Common misconceptions and frequently asked questions
Whether you’re an engineer, a maintenance supervisor, or a buyer evaluating valve specs, this guide will help you avoid costly mistakes and choose the right valve for the job.

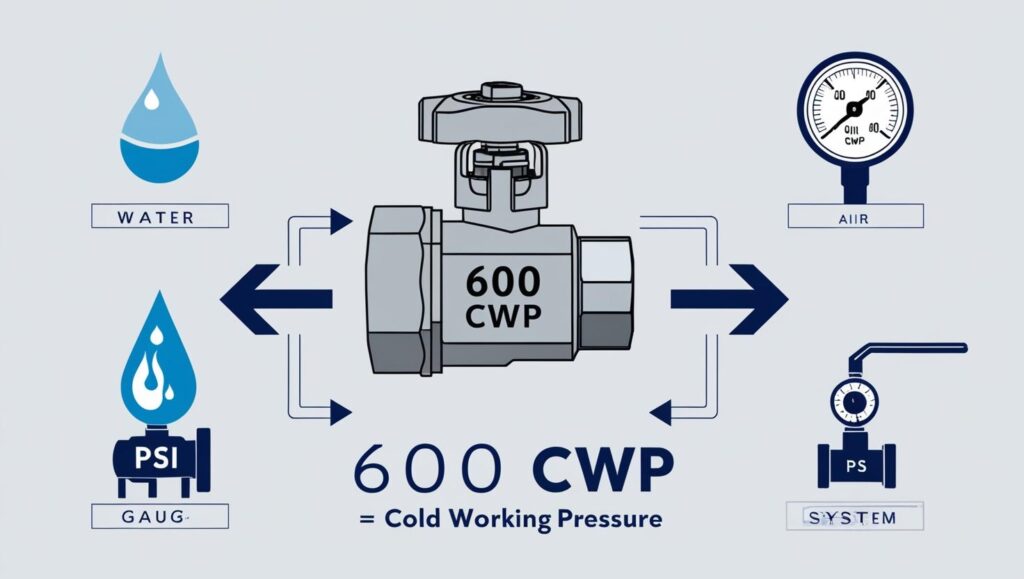

1. What Does “CWP” Mean on a Ball Valve?
CWP stands for Cold Working Pressure. It indicates the maximum allowable working pressure of a valve at ambient temperature—usually defined as around 73°F (23°C)—and under non-shock conditions.
You’ll often see it marked as:
- 600 CWP
- 1000 CWP
- 2000 CWP
This number refers to PSI (pounds per square inch) and tells you how much pressure the valve can withstand when operating with standard fluids like water, oil, or air at normal temperatures—not under steam or high-heat conditions.
2. What Does the CWP Rating Actually Measure?
Understanding the CWP rating is essential for safe and appropriate valve selection. Many users mistakenly assume that a higher CWP rating automatically makes a valve suitable for all types of media—including steam or high-temperature fluids. In reality, that’s not the case.
✅ Cold Working Pressure = Non-Shock Pressure at Ambient Temperature
- CWP defines the maximum continuous pressure a valve can safely handle at room temperature (~73°F / 23°C).
- It is measured under non-shock conditions, meaning it does not account for water hammer, pressure spikes, or thermal expansion.
- It does not reflect performance at elevated temperatures, which require a different rating (typically WSP for steam).
For example, a valve marked “600 CWP” is rated for 600 PSI of working pressure at ambient temperature with suitable fluids like water, air, or oil—not steam.
❌ What CWP Does NOT Represent
- Not a steam rating
→ Steam systems demand special temperature and pressure resistance, which CWP does not cover. - Not burst pressure
→ Burst pressure is usually 3–4x higher than CWP, but only used as a limit test—not for operation. - Not high-temperature pressure
→ Materials (like seals and seats) often degrade at high heat, even if the PSI is within range.
How Is CWP Determined?
CWP ratings follow guidelines from industry standards such as:
- ASME B16.34 – Valves, flanged, threaded, and welding end
- MSS SP-110 – Ball valves with threaded or socket weld ends
- API 598 – Valve pressure testing standards
Most manufacturers use hydrostatic testing at room temperature to verify the valve’s ability to hold pressure continuously.
Summary
- CWP = Safe, non-shock pressure at ambient temperature
- It’s not for steam, not for high temps, and not burst pressure
- Think of CWP as your everyday operating pressure—not your safety margin
3. What Systems Are CWP Valves Suitable For?
Knowing where a CWP-rated valve can be safely used is just as important as understanding what the rating means. Although CWP valves are versatile and reliable for many everyday applications, they are not a one-size-fits-all solution—especially when it comes to temperature and media type.
Let’s break down which systems are suitable—and which are risky or outright unsafe—for CWP valves.
✅ Recommended Applications for CWP-Rated Valves
CWP valves are generally safe and effective for the following systems:
- Cold or ambient temperature water systems
e.g., building plumbing, irrigation, industrial rinse lines - Low-temperature oil circuits
e.g., hydraulic lines with mineral oil or non-aggressive lubricants - Compressed air systems
⚠️ Only when the valve is tested for bubble-tight shutoff and air service - Chilled water and HVAC loops
e.g., commercial cooling systems or fan coil units (within temperature limits)
⚠️ Conditional Applications (Confirm Before Use)
Some systems may be compatible if the valve materials are certified for the conditions:
- Hot water lines
→ Check seat and seal temperature limits (many top out at 180–200°F) - Low-pressure gas lines
→ Confirm leak testing and safety certification - Non-corrosive chemical fluids
→ Material compatibility is essential—PTFE seats may not handle every chemical
❌ Not Recommended for CWP Valves
Avoid using CWP-only valves in the following conditions:
- Steam lines (saturated or superheated)
→ Requires WSP-rated or metal-seated steam valves - High-temperature oil or hot glycol
→ May exceed thermal limits of soft seats - Sanitary / food / pharmaceutical processes
→ Requires NSF/ANSI or FDA-certified valves - Aggressive chemicals or corrosive gases
→ Use specialty valves with tested material compatibility
Table: CWP Valve Compatibility by System Type
| System / Media Type | Safe to Use? | Notes |
|---|---|---|
| Cold Water | ✅ | Ideal application |
| Low-Temp Oil | ✅ | Non-corrosive only |
| Compressed Air | ⚠️ | Must be tested for gas-tight shutoff |
| Hot Water (>180°F) | ⚠️ | Check material temp limits (PTFE/EPDM, etc.) |
| Steam | ❌ | Requires WSP or steam-rated design |
| Sanitary/Food Processing | ❌ | Requires sanitary certification |
| Corrosive Chemicals or Gases | ❌ | Not suitable without specific chemical compatibility verification |
Summary
✅ Use CWP-rated valves in cold, non-corrosive liquid or air systems.
⚠️ Proceed with caution in hot water or compressed air setups—check material specs.
❌ Never use CWP valves in steam, high-temp, or food-grade environments.

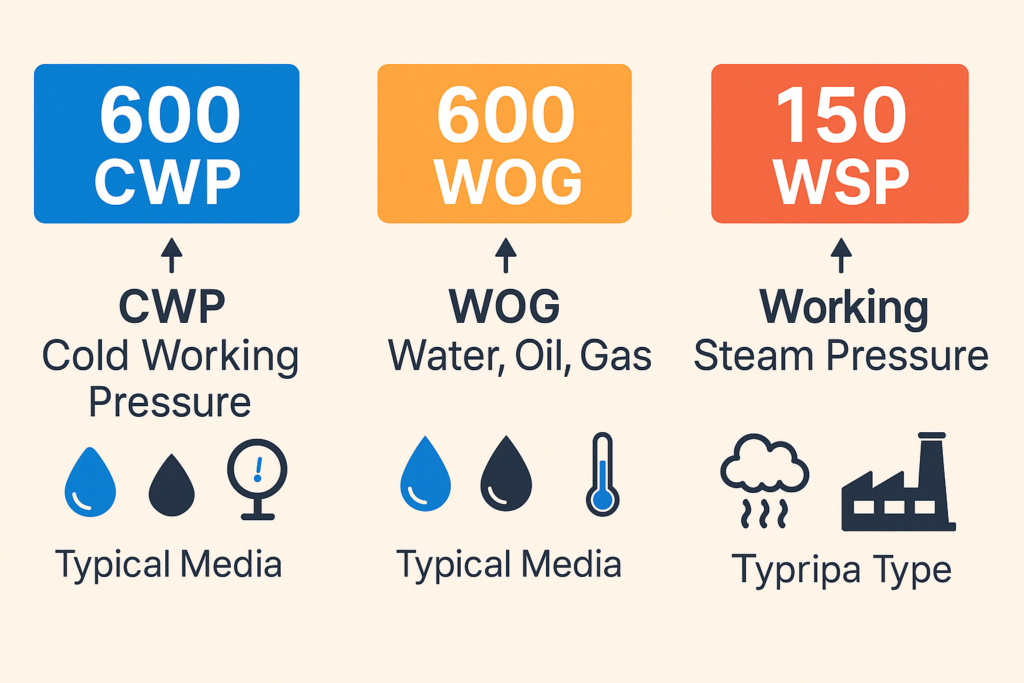

4. How CWP Compares to WOG and WSP Ratings
CWP, WOG, and WSP are three of the most common pressure ratings found on ball valves—but they are not interchangeable. Each defines a different set of conditions under which a valve can operate safely.
To make the right selection, you need to know the differences in pressure, temperature, media compatibility, and test standards.
CWP – Cold Working Pressure
- Meaning: Max working pressure at ambient temperature (~73°F)
- Media: Water, oil, gas, compressed air (non-shock)
- Use Case: Industrial systems, flanged valves, HVAC, general service
- Marking: Often engraved as “600 CWP”, “1000 CWP”
WOG – Water, Oil, Gas
- Meaning: Max working pressure for water, oil, and gas at ambient temperature
- Very similar to CWP in rating and usage
- More common in threaded or residential plumbing valves
- Marking: “600 WOG”, “1000 WOG”, etc.
WSP – Working Steam Pressure
- Meaning: Max working pressure for saturated steam
- Tested at elevated temperatures (usually ≥250°F / 121°C)
- Requires high-temp-resistant body and soft-seating materials (or metal seats)
- Marking: “150 WSP”, “250 WSP”, etc.
Table: CWP vs WOG vs WSP – Key Differences
| Rating | Full Name | Temp Condition | Typical Media | Common Use Cases | Marking Example |
|---|---|---|---|---|---|
| CWP | Cold Working Pressure | ~73°F (ambient) | Water, oil, gas | Flanged valves, HVAC, industrial | 600 CWP |
| WOG | Water, Oil, Gas | ~73°F (ambient) | Water, oil, gas | Plumbing, irrigation, light-duty | 600 WOG |
| WSP | Working Steam Pressure | ≥250°F (steam) | Saturated steam | Boilers, sterilizers, heat loops | 150 WSP |
Summary
- CWP ≈ WOG: Both for ambient-temp, non-shock liquid/gas systems
- WSP is for steam—a totally different application requiring higher temperature resistance
- Choose based on system temperature, pressure, and fluid type, not just the PSI number

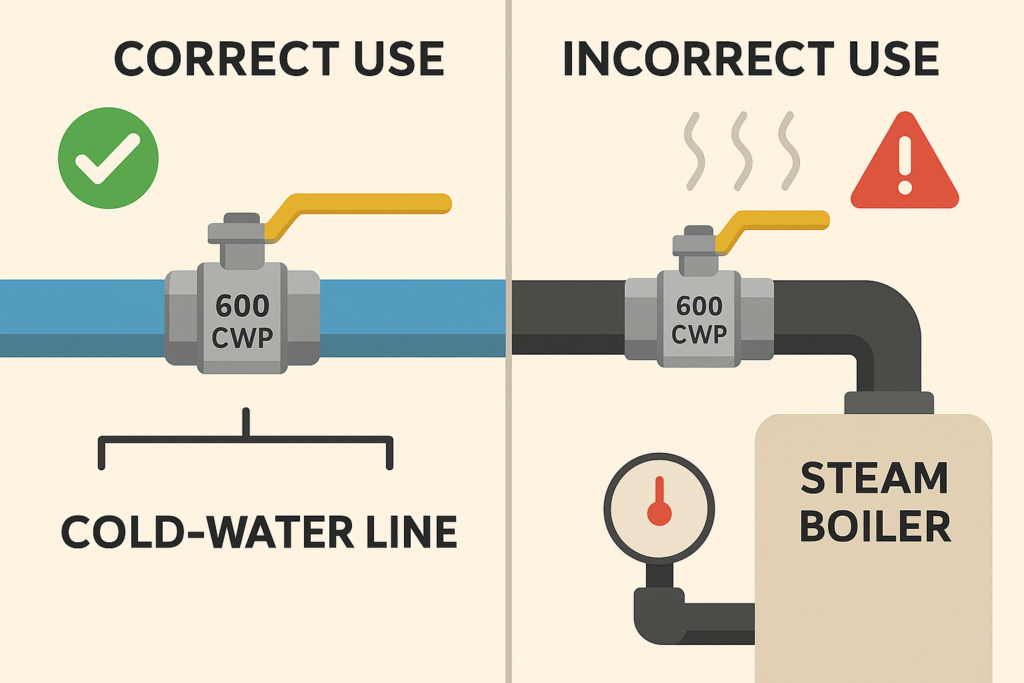

5. Why You Shouldn’t Misuse CWP-Rated Valves
One of the most common and dangerous assumptions users make is that a CWP rating is “good enough” for anything—as long as the pressure doesn’t exceed the number. Unfortunately, this misunderstanding can lead to premature valve failure, system damage, or even safety hazards.
The Risks of Misusing CWP Valves
Here’s what can happen if you install a CWP-rated valve in the wrong system, such as:
Steam or High-Temperature Lines
- PTFE seats and elastomer seals can melt or deform
- The valve may leak, seize, or crack under thermal stress
- Steam can flash explosively through degraded seals
Pressurized Gas Without Leak Testing
- Some CWP valves are not bubble-tight rated
- Can lead to slow gas leakage, pressure drop, or ignition risk (if flammable)
Food or Chemical Applications
- CWP doesn’t imply NSF/FDA or chemical compatibility
- Risk of contamination, seal degradation, or corrosion
Why Pressure Isn’t the Only Factor
Even if a valve is rated for 600 PSI CWP, that doesn’t mean it will:
- Handle hot water above 180°F
- Seal safely under steam pressure
- Withstand corrosive or reactive media
- Meet sanitary regulations for food and pharma use
CWP is a pressure-only metric under normal temperature—it doesn’t include temperature, chemical, or hygiene ratings.
Summary
✅ Use CWP valves for water, oil, or air at ambient temperatures
❌ Don’t use them for steam, food-grade, or corrosive media
⚠️ Always check temperature and material compatibility—not just pressure rating
6. FAQs: Understanding Cold Working Pressure Ratings
To help clear up common confusion, here are real-world questions users ask about CWP-rated ball valves—with clear, concise answers to guide safe and informed usage.
What does “CWP” stand for on a valve?
CWP means Cold Working Pressure—the maximum non-shock pressure a valve can safely handle at ambient temperature (typically 73°F / 23°C). It does not apply to elevated temperatures or steam.
Is CWP the same as PSI?
Not exactly.
CWP is measured in PSI, but it refers to working pressure under specific conditions (cold, non-shock). It’s not the same as burst pressure or high-temp pressure ratings.
Can I use a CWP valve for steam?
No.
CWP valves are not rated for steam. Steam systems require WSP-rated valves, tested for high temperatures and thermal cycling.
Is CWP the same as WOG?
They are similar but not identical.
- Both refer to working pressure at ambient temperature
- WOG stands for Water, Oil, Gas—more common in plumbing valves
- CWP is often used in industrial specs and flanged valves
Can I use a CWP-rated valve for compressed air?
Sometimes.
You need to verify if the valve has been tested for air/gas service. Not all CWP valves are leak-tight in gas applications.
Is CWP suitable for hot water?
Only if the valve’s materials can handle the temperature.
Check the seat/seal temp rating—many soft-seated valves max out at 180°F–200°F. CWP doesn’t guarantee thermal resistance.
What happens if I exceed the CWP rating?
The valve may:
- Leak through the stem or body
- Suffer seat or seal failure
- Warp or crack under sustained pressure
Always keep operating pressure below the CWP—and consider a margin of safety in high-risk systems.
Is CWP pressure tested?
Yes, reputable manufacturers test CWP ratings using hydrostatic pressure tests at ambient temperature, in accordance with industry standards like API 598 or MSS SP-110.
Summary
CWP defines how much pressure a valve can safely handle—under cold, steady conditions.
But it doesn’t guarantee safety in steam, high-temp, or specialized fluid systems.
Always read beyond the rating number.
7. Conclusion: What CWP Really Tells You—And What It Doesn’t
If you see “CWP” on a ball valve, it tells you one thing clearly: how much pressure the valve can safely handle under ambient, non-shock conditions. That’s it.
But it doesn’t tell you:
- Whether the valve is safe for steam
- Whether it can be used at high temperatures
- Whether it meets sanitary or chemical requirements
✅ What You Should Remember About CWP
- CWP = Cold Working Pressure, measured in PSI
- It’s tested at around 73°F / 23°C
- It assumes non-shock, steady-state pressure
- It’s typically used for water, oil, or air in industrial or plumbing systems
❌ What CWP Doesn’t Guarantee
- Compatibility with steam or high-temperature systems (use WSP)
- Resistance to chemical corrosion or aggressive media
- Approval for food-grade or sanitary environments
Always consider temperature, media, certification, and system risks—not just pressure—when choosing a valve.
✅ Quick-Check Chart: Is CWP Enough?
| Application Scenario | Use CWP Valve? | Notes |
|---|---|---|
| Cold potable water | ✅ | Ideal use case |
| Hot water (180°F+) | ⚠️ | Check seat/seal material limits |
| Compressed air system | ⚠️ | Must confirm gas-tightness test |
| Steam line (boiler, autoclave) | ❌ | Requires WSP-rated or steam-specific valve |
| Food or pharmaceutical use | ❌ | Requires NSF/ANSI or FDA-certified sanitary valve |
| Aggressive chemicals or acids | ❌ | Needs corrosion-tested industrial or PTFE-lined valve |
