Ball Valve vs. Gate Valve: Which is Best for Your Application?

Industrial pipeline wedge gate valve with rubber wedge on a white background. Butterfly valve with reducer isolated on white background. Manual valve

There are many industrial valves available in the market. Different industrial valve types function differently. Some regulate the flow of media while others isolate media. Others control the direction of the media. These also vary in design and sizes.

Two of the most common valves used in industrial applications are ball valves and gate valves. Both are known to provide tight shut-off mechanisms. This article will compare the two valves in various factors such as working mechanisms, designs, ports, and the likes.

What is a Ball Valve?

The ball valve is part of the quarter-turn valve family. It only takes a 90-degree turn for it to open or close. The ball valve design has a hollowed-out ball that acts as the disc which allows the flow of media. Mostly for non-slurry applications, ball valves are also suited for applications that require tight shut-off.

The quick opening and closing of the ball make it important in some applications that need media isolation. Ball valves are commonly used in low-pressure applications. In a nutshell, ball valves are best for control and management of media with minimal pressure drop.

What is a Gate Valve

On the other hand, gate valves belong to the linear motion valve family. Otherwise known as the knife valve or the slide valve, the gate valve has a flat or wedge disc that acts as a gate. This gate or disc controls the flow of fluid inside the valve. The gate valve is best used when the linear flow of media with less pressure drop is preferred.

It is a shut-off valve with throttling capacity. It is intended more for material flow as to flow regulation.  More suitable for thicker flow media, the flat disc of gate valves makes it easier to cut through such kind of media.

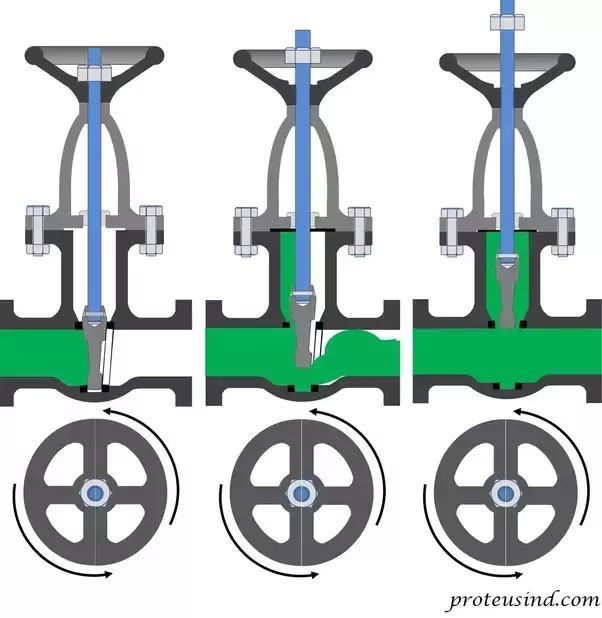

What is the working principle of the gate valve

The gate valve is also part of the rotary family as the wheel or actuator needs to be rotated for the wedge or disc to open. For its closing position, the gate moves downwards and between two seats located on the upper portion of the disc as well as at its bottom as shown in the image above.

Gate Valve vs. Ball Valve: Working Mechanism

How Does a Ball Valve Work?

Ball valves have a hollow sphere that allows the passage of media. If you look at the cross-section of the ball valve below, the operation is through the rotation of the shaft or stem by a quarter of a turn. The stem is perpendicular to the ball part of the valve.

Fluid is allowed to pass when the stem is at the right angle with regards to the ball disc. The lateral movement of the media plays an important role in the shut-off mechanism. Ball valves use fluid pressure to act upon the valve or seat to provide a tight seal, depending on the ball valve configuration.

Ball valves can be full port or reduced port. A full port ball valve means its diameter is the same as the pipe. This allows for low operating torque and pressure drop. However, there are also reduced port type where the size of the valve is one size smaller than that of the pipe size.

Ball valve

Ball valve

How Does a Gate Valve Work?

Gate valves work by lifting the gate or disc to allow the media to pass through the valve. These types of valves only allow unidirectional flow with little pressure drop. You would often see gate valves with handwheels. The handwheel is attached to the packing.

There are two kinds of gate valve stem designs. When this hand wheel rotates, the stem rises to the outside environment and, at the same time, lifts the gate. The other kind of gate valve is the non-rising gate valve. This is characterized by the stem threaded into the wedge, thereby exposing it to the media.

When the gate valve opens, the path becomes larger. The flow path is not linear in the sense that the media can occupy the void as seen in the illustration below. If the gate valve is used as a throttle, it would have an uneven flow rate. This will cause vibration. Such vibration can cause damage to the disk.

gate valve

Valve Flow Direction

Ball valves and gate valves, by convention, is bi-directional. This means that ball valves have the capacity to block the media from both the upstream end and the downstream end. Check the illustration below.

piping flow direction of valve part

Valve Seal Capacity

For the ball valves, the seals can be fixed for the floating ball valve design and it can be floating for the trunnion-mounted ball valve. Since ball valves are often used in low-pressure applications, considering the nature of its working mechanism, the primary seals are often made of PTFE and other related materials.

While the quick closing and opening of the ball valve can be advantageous, this can also cause some problems. Ball valves are prone to water hammer or the sudden surge of pressure upon closing of the valve. This condition damages the seats of the ball valve.

Furthermore, water hammer can increase the pressure inside the ball valve. In applications where such conditions can occur, i.e. combustible material, there is an emergency seat seal, often made of metal. This is the second barrier in conditions where the elastomeric seal becomes damaged in high-pressure services. To relieve pressure, ball valves can have a pressure vent installed.

Gate valves minimize pressure drops when fully opened. This is through the use of full bore port design. This means that the size of the valve is equal to the size of the pipe. It is because of this characteristic of gate valves that give them an advantage over ball valves. Water hammering does not occur in gate valves.

The downside of the gate valve is, high-pressure differential often happens in the shutoff. The friction can cause seat and disk wear.

Valve Design and Construction Differences

The main difference between ball valves and gate valves is their structure even if they function similarly.

For ball valves, movement of media is free-flowing. Aside from this, the ball valve design allows it to last longer even after heavy use. Of course, one should also take into consideration the type of material being used to manufacture it.

While ball valves do not provide fine control, their tight shut capability is one of the best for low-pressure applications. Ball valves are reliable in this aspect. Low-pressure loss is another of quality of ball valves. However, because of the quarter-turn capability of ball valves, it takes up more space.

Gate valve, on the other hand, uses a handwheel to open or close the disc. The valve body is also much more slender, thus, only a narrow space is needed. In contrast to ball valves, gate valves, offer a more refined control as it has throttling abilities. It may not have a quick shut off and on capability, but it can control not only the media flow but also its pressure.

Valve Material

Ball Valves:

Gate Valves:


Ball valves are often used in applications that require a smaller diameter, which can be up to DN 300 or a 12-inch diameter pipe. On the other hand, gate valves are often used in applications that require noncritical services and leakages are not a top priority.

Gate Valve

  • – Oil and Gas Industry
  • – Pharmaceutical Industry
  • – Manufacturing Industry
  • – Automotive Industry
  • – Marine Industry

Ball  Valve:

In Summary

Ball valves have its advantages and disadvantages and so are gate valves. Understanding how each function and knowing whether such valve suits the application should be the priority. Contact us and we will give you a free valve estimate.
